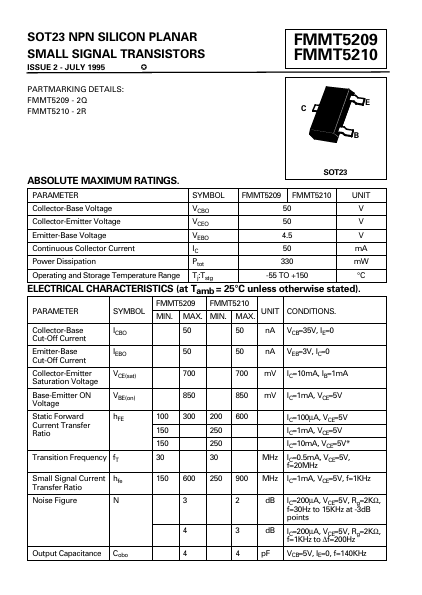

FMMT5209
SOT23 NPN SILICON PLANAR
SMALL SIGNAL TRANSISTORS
ISSUE 2
- JULY 1995
PARTMARKING DETAILS: FMMT5209
- 2Q FMMT5210
- 2R
FMMT5209 FMMT5210
ABSOLUTE MAXIMUM RATINGS.
SOT23
PARAMETER
SYMBOL FMMT5209 FMMT5210 UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Continuous Collector Current
50 m A
Power Dissipation
Ptot
330 m W
Operating and Storage Temperature Range Tj:Tstg
-55 TO +150
°C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
FMMT5209 FMMT5210 SYMBOL MIN. MAX. MIN. MAX. UNIT CONDITIONS.
Collector-Base
ICBO
Cut-Off Current
50 n A VCB=35V,...
