FZT1047A
FEATURES
- VCEO = 10V
- 5 Amp Continuous Current
- 20 Amp Pulse Current
- Low Saturation Voltage
- High Gain
- Extremely Low Equivalent On-resistance; RCE(sat) = 44mΩ at 5A
B SOT223
ABSOLUTE MAXIMUM RATINGS.
PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Base Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range
SYMBOL VCBO VCEO VEBO ICM IC IB Ptot Tj:Tstg
VALUE 35 10 5 20 5 500 2.5
-55 to +150
UNIT V V V A A m A W °C

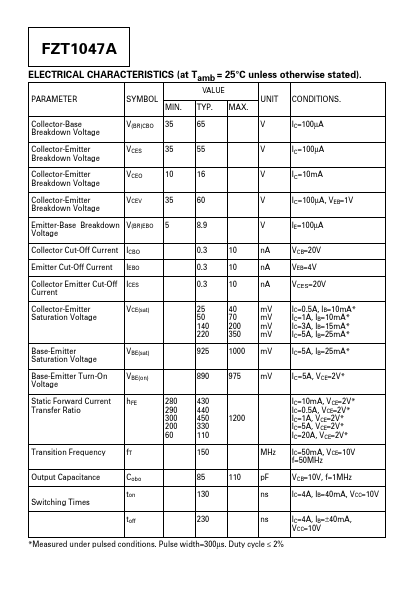

ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL MIN.
VALUE TYP. MAX.
UNIT
CONDITIONS.
Collector-Base Breakdown Voltage
V(BR)CBO 35
IC=100µA
Collector-Emitter Breakdown Voltage
VCES
IC=100µA
Collector-Emitter Breakdown Voltage
VCEO
IC=10m A
Collector-Emitter Breakdown Voltage
VCEV
IC=100µA, VEB=1V
Emitter-Base Breakdown V(BR)EBO...
