FZT1051A
FEATURES
- VCEO = 40V
- 5 Amp Continuous Current
- 20 Amp Pulse Current
- Low Saturation Voltage
- High Gain
- Extremely Low Equivalent On-resistance; RCE(sat) = 50mΩ at 5A
ABSOLUTE MAXIMUM RATINGS.
PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Base Current Power Dissipation at Tamb=25°C † Operating and Storage Temperature Range
SYMBOL VCBO VCEO VEBO ICM IC IB Ptot Tj:Tstg
VALUE 150 40 5 10 5 500 2.5
-55 to +150
UNIT V V V A A m A W °C
† The power which can be dissipated assuming the device is mounted in typical manner on a PCB with copper equal to 2 inches x 2 inches.

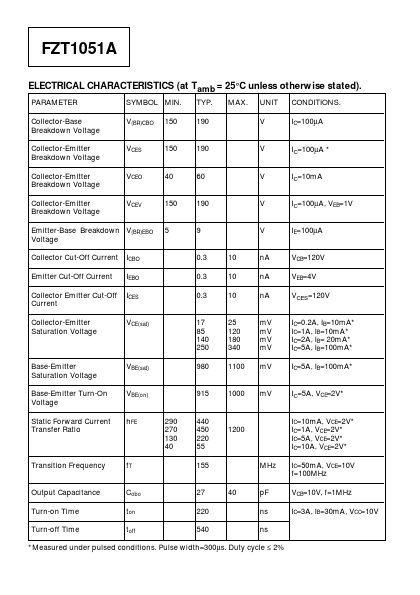

ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Collector-Base Breakdown Voltage
V(BR)CBO 150
IC=100µA
Collector-Emitter Breakdown Voltage
VCES
150 190
IC=100µA
- Collector-Emitter Breakdown...
