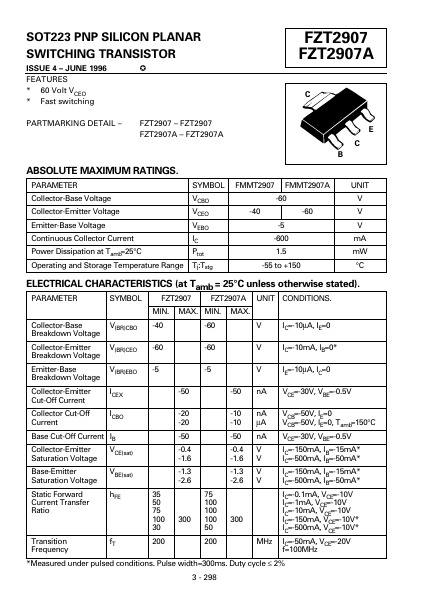

FZT2907
FEATURES
- 60 Volt VCEO
- Fast switching
FZT2907 FZT2907A
PARTMARKING DETAIL
FZT2907 FZT2907 FZT2907A FZT2907A
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range
VCBO VCEO VEBO IC Ptot Tj:Tstg
FMMT2907 FMMT2907A
-60
-40
-60
-5
-600
-55 to +150
UNIT V V V m A m W °C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL FZT2907 FZT2907A UNIT CONDITIONS.
MIN. MAX. MIN. MAX.
Collector-Base
V(BR)CBO -40
Breakdown Voltage
-60
IC=-10µA, IE=0
Collector-Emitter
V(BR)CEO -60
-60
IC=-10m A, IB=0-
Breakdown Voltage
Emitter-Base
V(BR)EBO...
