FZT549

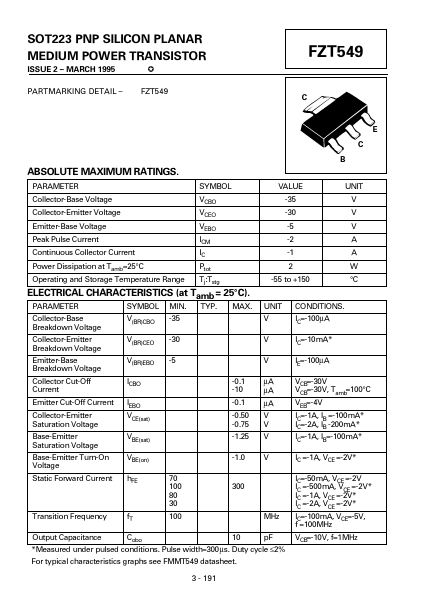

FZT549 is SOT223 PNP SILICON PLANAR MEDIUM POWER TRANSISTOR manufactured by Zetex Semiconductors.
SOT223 PNP SILICON PLANAR
MEDIUM POWER TRANSISTOR
ISSUE 2 MARCH 1995
PARTMARKING DETAIL FZT549
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Peak Pulse Current
Continuous Collector Current
Power Dissipation at Tamb=25°C
Ptot
Operating and Storage Temperature Range Tj:Tstg
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
PARAMETER
SYMBOL MIN. TYP. MAX.
-35
-30
-5
-2
-1
-55 to +150
°C
UNIT CONDITIONS.
Collector-Base Breakdown...
