FZT690B datasheet by Zetex (now Diodes Incorporated).
| Part number | FZT690B |
|---|---|
| Datasheet | FZT690B-ZetexSemiconductors.pdf |
| File Size | 107.17 KB |
| Manufacturer | Zetex (now Diodes Incorporated) |
| Description | NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR |
|
|

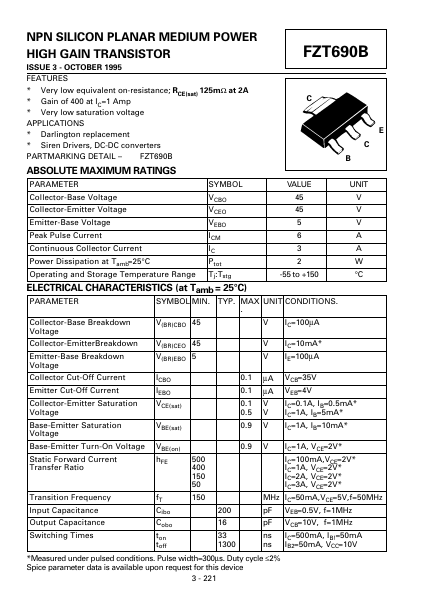

NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR FZT690B ISSUE 3 - OCTOBER 1995.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
FZT690B | 45V NPN MEDIUM POWER TRANSISTOR | Diodes |
 |
FZT690B | NPN Silicon Planar Medium Power High Gain Transistor | Kexin |
