ZD24C016A Description

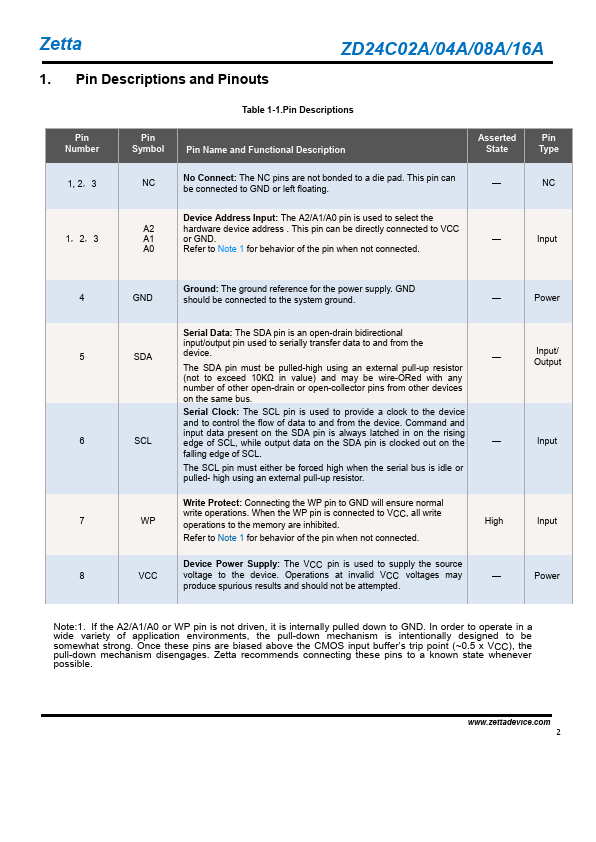

The device is optimized for use in many industrial and mercial applications where low-power and lowvoltage operation are essential. Pin Descriptions and Pinouts ZD24C02A/04A/08A/16A Pin Number Pin Symbol Table 1-1.Pin Descriptions Pin Name and Functional Description Asserted State Pin Type 1, 2，3 NC No Connect: The NC pins are not bonded to a die pad.

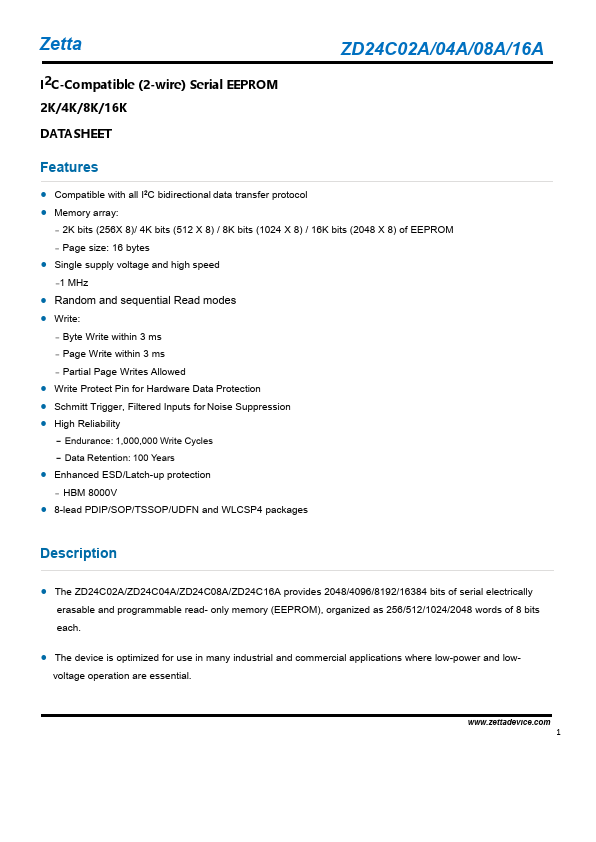

ZD24C016A Key Features
- patible with all I2C bidirectional data transfer protocol
- Memory array
- Page size: 16 bytes
- Single supply voltage and high speed -1 MHz
- Random and sequential Read modes
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
