Zetta ZD24C02A
The ZD24C02A/ZD24C04A/ZD24C08A/ZD24C16A provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read- only memory (EEPROM), organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and lowvoltage operation are essential. This pin can be connected to GND or left floating.| Part No. | ZD24C02A |
|---|---|
| Datasheet | ZD24C02A Download |
| Manufacturer |  Zetta |
| Description | I2C-Compatible (2-wire) Serial EEPROM |
| Buy | Stock & Price |

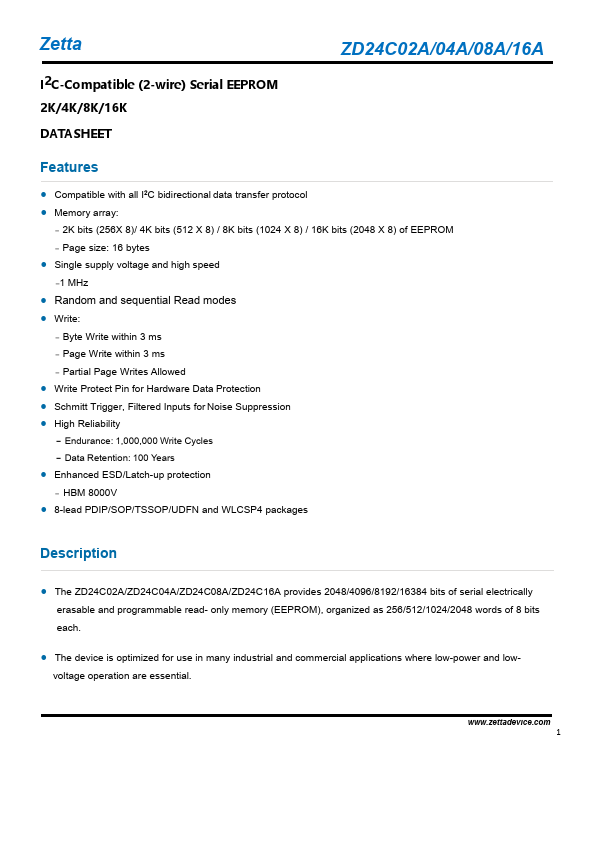

FEATURES
● Compatible with all I2C bidirectional data transfer protocol● Memory array: – 2K bits (256X 8)/ 4K bits (512 X 8) / 8K bits (1024 X 8) / 16K bits (2048 X 8) of EEPROM – Page size: 16 bytes
● Single supply voltage and high speed –1 MHz
● Random and sequential Read modes
● Write: – Byte Write within 3 ms – Page Write within 3 ms – Partial Page Writes Allowed
● Write Protect Pin for Hardware Data Protection
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● High Reliability – Endurance: 1,000,000 Write Cycles – Data Retention: 100 Years
● Enhanced ESD/Latch-up protection – HBM 8000V
● 8-lead PDIP/SOP/TSSOP/UDFN and WLCSP4 packages
DESCRIPTION

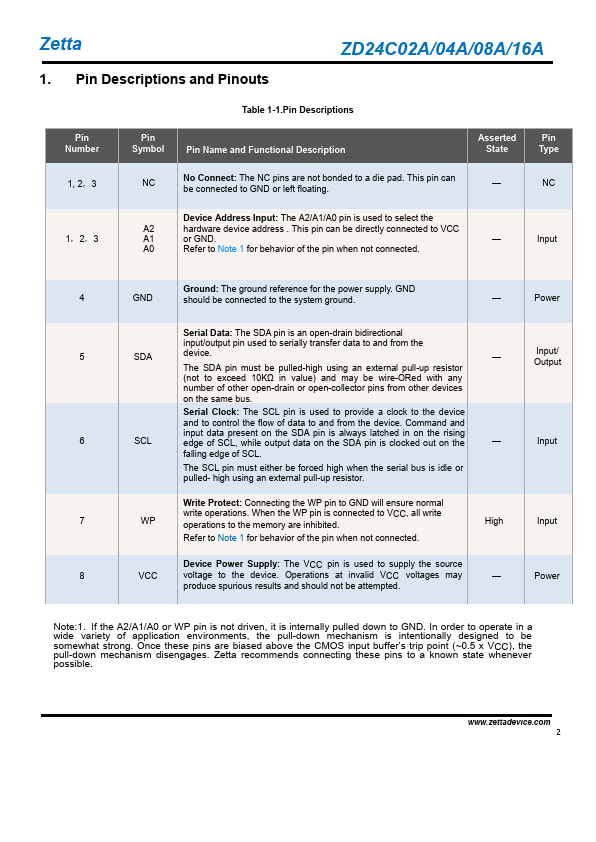

●● 1 Zetta 1. Pin Descriptions and Pinouts ZD24C02A/04A/08A/16A Pin Number Pin Symbol Table 1-1.Pin Descriptions Pin Name and Functional
DESCRIPTION
Asserted State Pin Type 1, 2，3 NC No Connect: The NC pins are not bonded to a die pad. — NC 1，2，3 Device Address Input: The A2/A1/A0 pin is used to select the A2 hardware device address .
