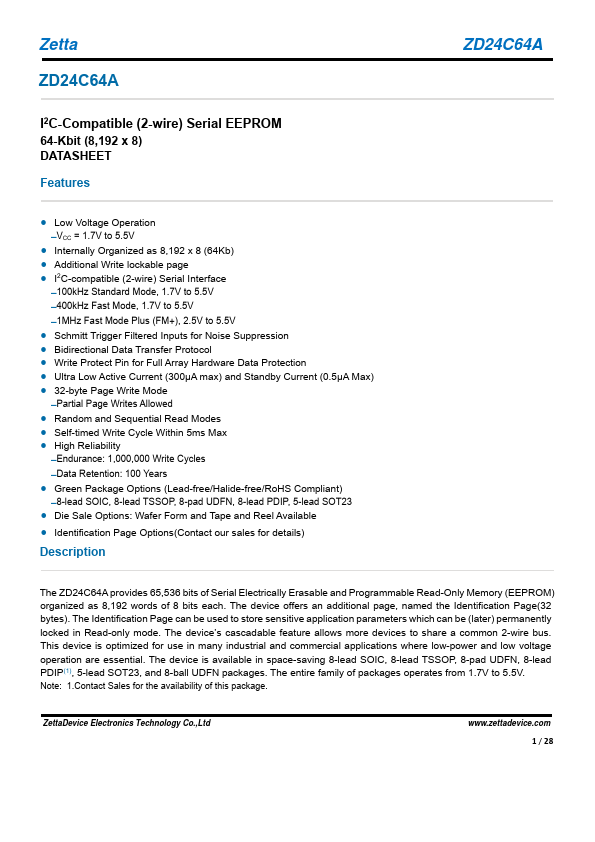

Features - Low Voltage Operation ̶ VCC = 1.7V to 5.5V - Internally Organized as 8,192 x 8 (64Kb) - Additional Write lockable page - I2C-patible (2-wire) Serial Interface ̶ 100k Hz Standard Mode, 1.7V to 5.5V ̶ 400k Hz Fast Mode, 1.7V to 5.5V ̶ 1MHz Fast Mode Plus (FM+), 2.5V to 5.5V - Schmitt Trigger Filtered Inputs for Noise Suppression - Bidirectional Data Transfer Protocol - Write Protect Pin for Full Array Hardware Data Protection - Ultra Low Active Current (300μA max) and Standby Current (0.5μA Max) - 32-byte Page Write Mode ̶ Partial Page Writes Allowed - Random and Sequential Read Modes - Self-timed Write Cycle Within 5ms Max - High Reliability ̶ Endurance: 1,000,000 Write Cycles ̶ Data Retention: 100 Years - Green Package Options (Lead-free/Halide-free/Ro HS pliant) ̶ 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23 - Die Sale Options: Wafer Form and Tape and Reel Available - Identification Page Options(Contact our sales for details) Description The ZD24C64A provides 65,536 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 8,192 words of 8 bits each. The device offers an additional page, named the Identification Page(32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode. The device’s cascadable feature allows more devices to share a mon 2-wire bus. This device is optimized for use in many industrial and mercial applications where low-power and low voltage operation are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball UDFN packages. The entire family of packages operates from 1.7V to 5.5V. Note: 1.Contact Sales for the availability of this package. Zetta Device Electronics Technology Co.,Ltd .zettadevice. 1 / 28 Zetta 1. Pin Descriptions and Pinouts Pin Pin Number Symbol Table 1-1.Pin Descriptions Pin Name and...
