ZD25Q128 Overview
Description

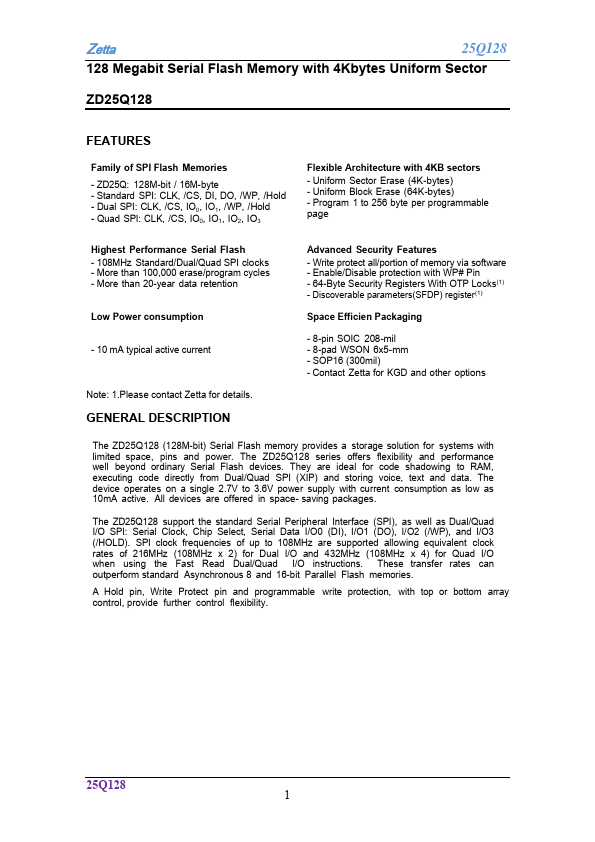

Advanced Security Features - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin - 64-Byte Security Registers With OTP Locks(1) - Discoverable parameters(SFDP) register(1) Space Efficien Packaging - 8-pin SOIC 208-mil - 8-pad WSON 6x5-mm - SOP16 (300mil) - Contact Zetta for KGD and other options The ZD25Q128 (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The ZD25Q128 series offers flexibility and performance well beyond ordinary Serial Flash devices.
Key Features
- ZD25Q: 128M-bit / 16M-byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 Flexible Architecture with 4KB sectors
- Uniform Sector Erase (4K-bytes)
- Uniform Block Erase (64K-bytes)
- Program 1 to 256 byte per programmable page Highest Performance Serial Flash
- 108MHz Standard/Dual/Quad SPI clocks
- More than 100,000 erase/program cycles
- More than 20-year data retention Low Power consumption
