ZD25Q64B Description
The ZD25Q64B supports the standard Serial Peripheral Interface (SPI, and Quad Peripheral Interface (QPI: Serial Clock, Chip Select, Serial Data I/O0(DI, I/O1(DO, I/O2(/WP, and I/O3(/HOLD. SPI clock frequencies of up to 133MHz are supported allowing equivalent clock rates of 266MHz for Dual Output and 532MHz for Quad Output when using the QPI and Fast Read Dual/Quad I/O instructions.

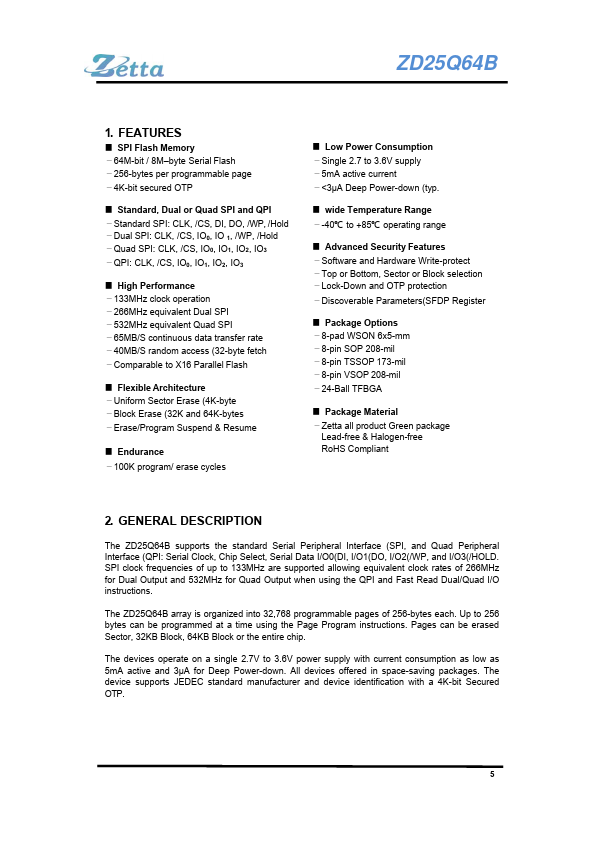

ZD25Q64B Key Features
- SPI Flash Memory -64M-bit / 8M-byte Serial Flash -256-bytes per programmable page -4K-bit secured OTP
- High Performance -133MHz clock operation -266MHz equivalent Dual SPI -532MHz equivalent Quad SPI -65MB/S continuous data
- Flexible Architecture -Uniform Sector Erase (4K-byte -Block Erase (32K and 64K-bytes -Erase/Program Suspend & Resume
- Endurance -100K program/ erase cycles
- Low Power Consumption -Single 2.7 to 3.6V supply -5mA active current -<3μA Deep Power-down (typ
- wide Temperature Range --40℃ to +85℃ operating range
- Advanced Security Features -Software and Hardware Write-protect -Top or Bottom, Sector or Block selection -Lock-Down and
- Package Material -Zetta all product Green package
