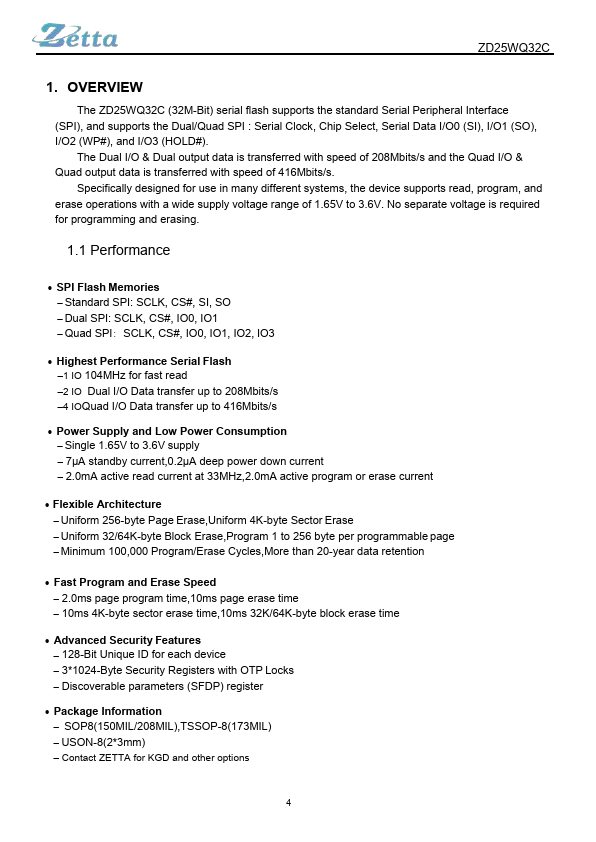

OVERVIEW The ZD25WQ32C (32M-Bit) serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI : Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O & Dual output data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a wide supply voltage range of 1.65V to 3.6V. No separate voltage is required for programming and erasing. 1.1 Performance - SPI Flash Memories - Standard SPI: SCLK, CS#, SI, SO - Dual SPI: SCLK, CS#, IO0, IO1 - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - Highest Performance Serial Flash - 1 IO 104MHz for fast read - 2 IO Dual I/O Data transfer up to 208Mbits/s - 4 IOQuad I/O Data transfer up to 416Mbits/s - Power Supply and Low Power Consumption - Single 1.65V to 3.6V supply - 7μA standby current,0.2μA deep power down current - 2.0m A active read current at 33MHz,2.0m A active program or erase current - Flexible Architecture - Uniform 256-byte Page Erase,Uniform 4K-byte Sector Erase - Uniform 32/64K-byte Block Erase,Program 1 to 256 byte per programmable page - Minimum 100,000 Program/Erase Cycles,More than 20-year data retention - Fast Program and Erase Speed - 2.0ms page program time,10ms page erase time - 10ms 4K-byte sector erase time,10ms 32K/64K-byte block erase time - Advanced Security Features - 128-Bit Unique ID for each device - 3- 1024-Byte Security Registers with OTP Locks - Discoverable parameters (SFDP) register - Package Information - SOP8(150MIL/208MIL),TSSOP-8(173MIL) - USON-8(2- 3mm) - Contact ZETTA for KGD and other options 1.2 Pin Definition CS# 1 8 VCC SO/IO1 WP#/IO2 Top...
