ZD8028C Datasheet | Zetta

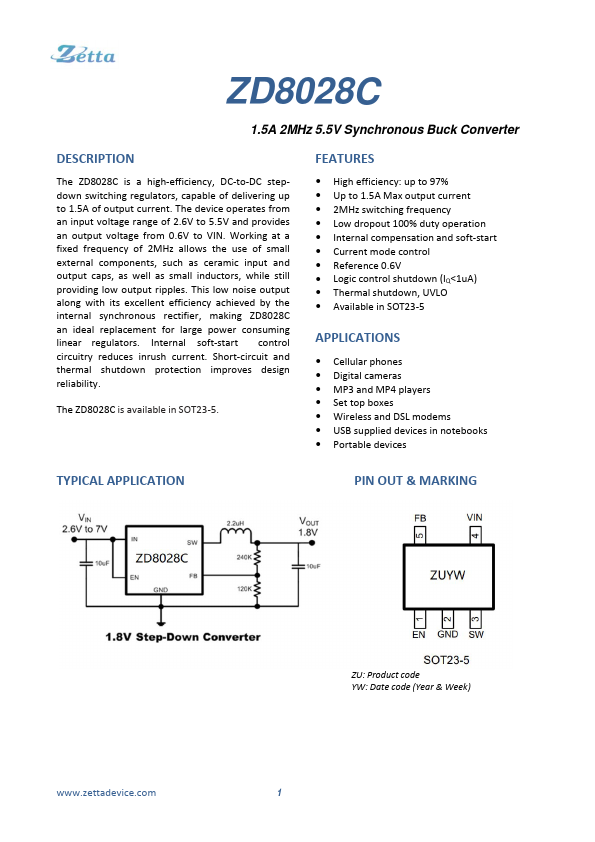

DESCRIPTION The ZD8028C is a high‐efficiency, DC‐to‐DC step‐ down switching regulators, capable of delivering up to 1.5A of output current. The device operates from an input voltage range of 2.6V to 5.5V and provides an output voltage from 0.6V to VIN. Working at a fixed frequency of 2MHz allows the use of small external ponents, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier, making ZD8028C an ideal replacement for large power consuming linear regulators. Internal soft‐start control circuitry reduces inrush current. Short‐circuit and thermal shutdown protection improves design reliability. The ZD8028C is available in SOT23‐5. FEATURES - High efficiency: up to 97% - Up to 1.5A Max output current - 2MHz switching frequency - Low dropout 100% duty operation - Internal pensation and soft‐start - Current mode control - Reference 0.6V - Logic control shutdown (IQ<1u A) - Thermal shutdown, UVLO - Available in SOT23‐5 APPLICATIONS - Cellular phones - Digital cameras - MP3 and MP4 players - Set top boxes - Wireless and DSL modems - USB supplied devices in notebooks - Portable devices TYPICAL APPLICATION PIN OUT & MARKING .zettadevice. ZU: Product code YW: Date code (Year & Week) ORDERING INFORMATION PART No. ZD8028IB5TR PACKAGE SOT23‐5 Tape&Reel 3000pcs/reel ABSOLUTE MAXIMUM RATING Parameter Max input voltage Max operating junction temperature(TJ) Ambient temperature(TA) Maximum power dissipation SOT23‐5 Maximum power dissipation Package thermal resistance (JA) DFN1.6x1.6‐6 Package thermal resistance (JC) Storage temperature(TS) Lead temperature & time ESD (HBM) Value 8V 125C ‐40C - 85C 400m W 600m W 125C/W 30C/W ‐40C ‐ 150C 260C, 10S >2000V Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. ELECTRICAL...
