ZDEMMC04GA Datasheet | Zetta

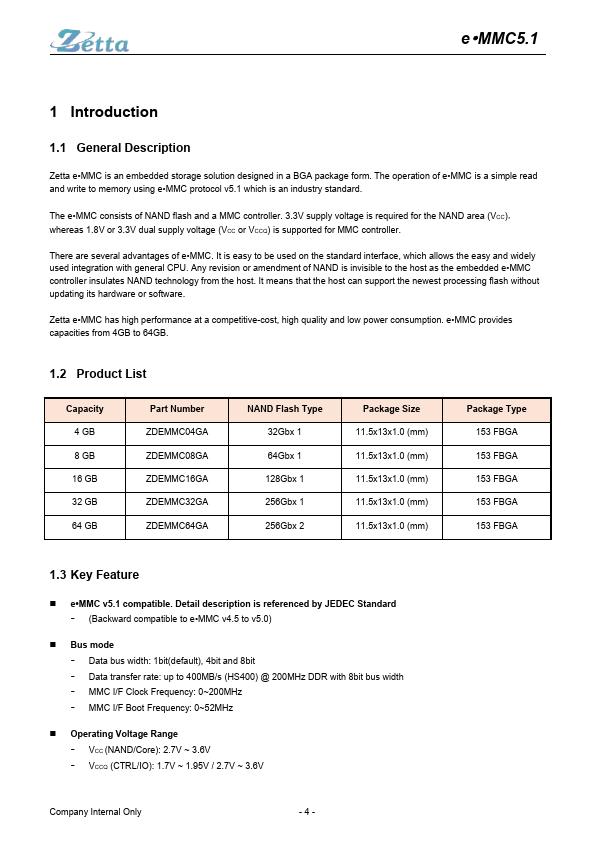

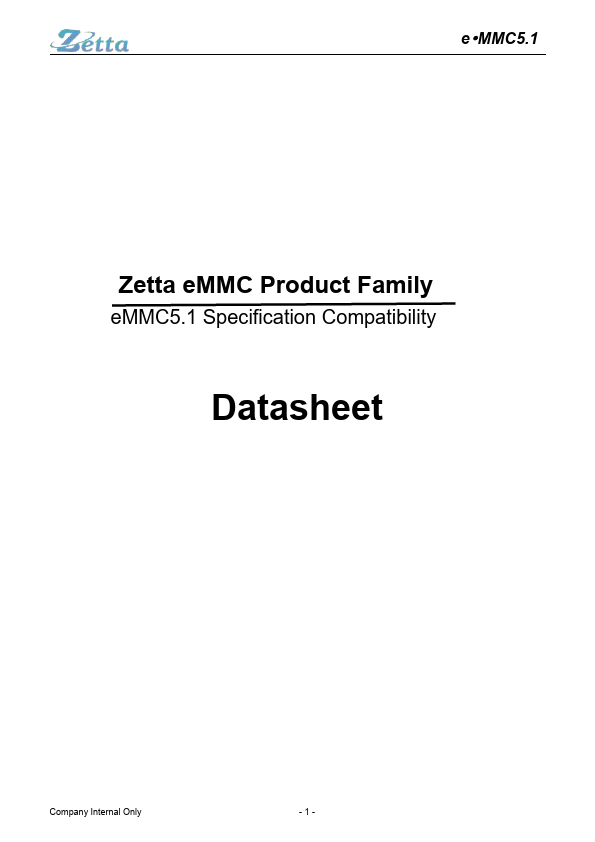

e- MMC5.1 Zetta eMMC Product Family eMMC5.1 Specification patibility Datasheet pany Internal Only -1- e- MMC5.1 1 Introduction 1.1 General Description Zetta e- MMC is an embedded storage solution designed in a BGA package form. The operation of e- MMC is a simple read and write to memory using e- MMC protocol v5.1 which is an industry standard. The e- MMC consists of NAND flash and a MMC controller. 3.3V supply voltage is required for the NAND area (VCC)， whereas 1.8V or 3.3V dual supply voltage (VCC or VCCQ) is supported for MMC controller. There are several advantages of e- MMC. It is easy to be used on the standard interface, which allows the easy and widely used integration with...
