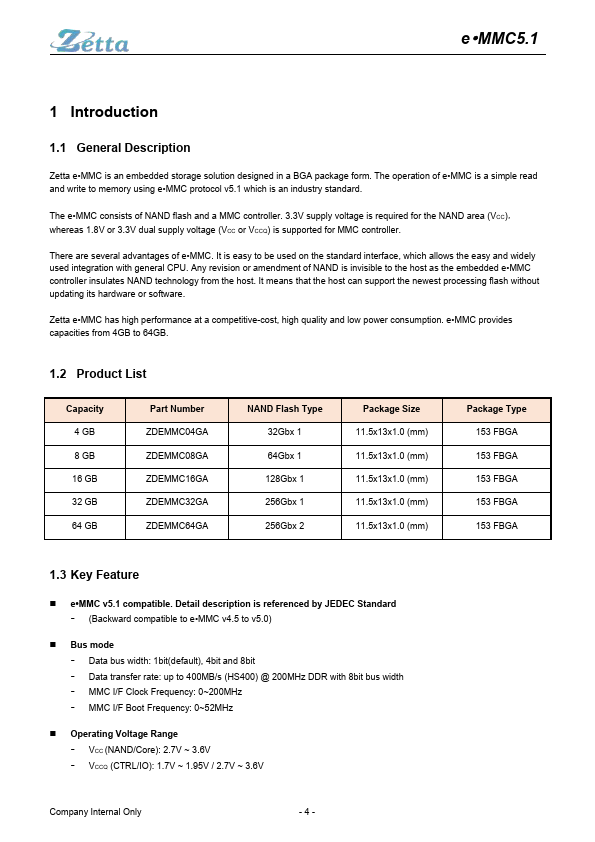

ZDEMMC08GA Overview
Key Features
- MMC v5.1 compatible. Detail description is referenced by JEDEC Standard
- (Backward compatible to e
- MMC v4.5 to v5.0)
- Data bus width: 1bit(default), 4bit and 8bit
- Data transfer rate: up to 400MB/s (HS400) @ 200MHz DDR with 8bit bus width
- MMC I/F Clock Frequency: 0~200MHz
- MMC I/F Boot Frequency: 0~52MHz
- Operating Voltage Range
- VCC (NAND/Core): 2.7V ~ 3.6V
- VCCQ (CTRL/IO): 1.7V ~ 1.95V / 2.7V ~ 3.6V Company Internal Only
