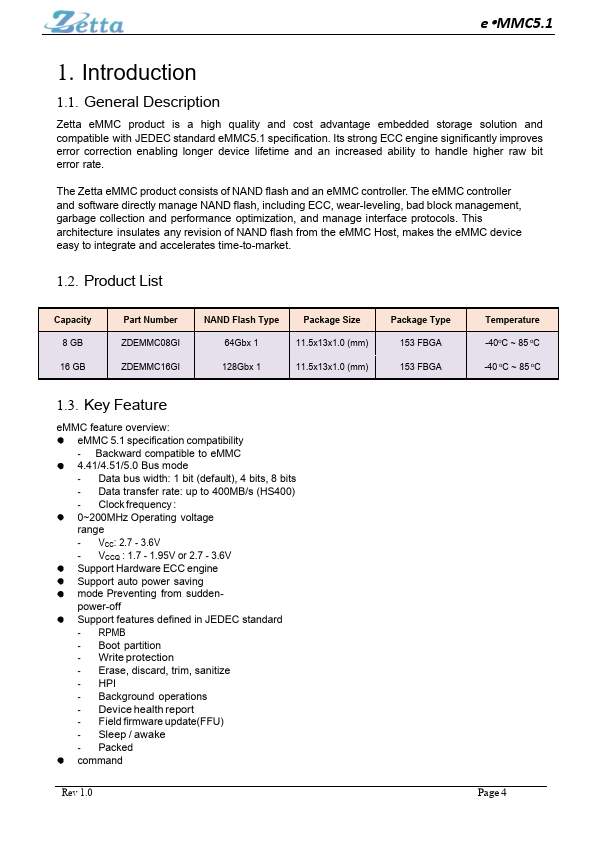

GENERAL DESCRIPTION
Zetta eMMC product is a high quality and cost advantage embedded storage solution and compatible with JEDEC standard eMMC5.1 specification. Its strong ECC engine significantly improves error correction enabling longer device lifetime and an increased ability to handle higher raw bit error rate. This architecture insulates any revision of NAND flash from the eMMC Host, makes the eMMC device easy to integrate and accelerates time-to-market. 1.2. Product List Capacity 8 GB 16 GB Part Number ZDEMMC08GI ZDEMMC16GI NAND Flash Type Package Size 64Gbx 1 11.5x13x1.0 (mm) 128Gbx 1 11.5x13x1.0 (mm) Package Type 153 FBGA 153 FBGA Temperature -40oC ~ 85 oC -40 oC ~ 85 oC 1.3. Key Feature eMMC feature overview: eMMC 5.1 specification compatibility - Backward compatible to eMMC 4.41/4.51/5.0 Bus mode - Data bus width: 1 bit (default), 4 bits, 8 bits - Data transfer rate: up to 400MB/s (HS400) - Clock frequency : 0~200MHz Operating voltage range - VCC: 2.7 - 3.6V - VCCQ : 1.7 - 1.9...
