ZDEMMC64GA
Overview

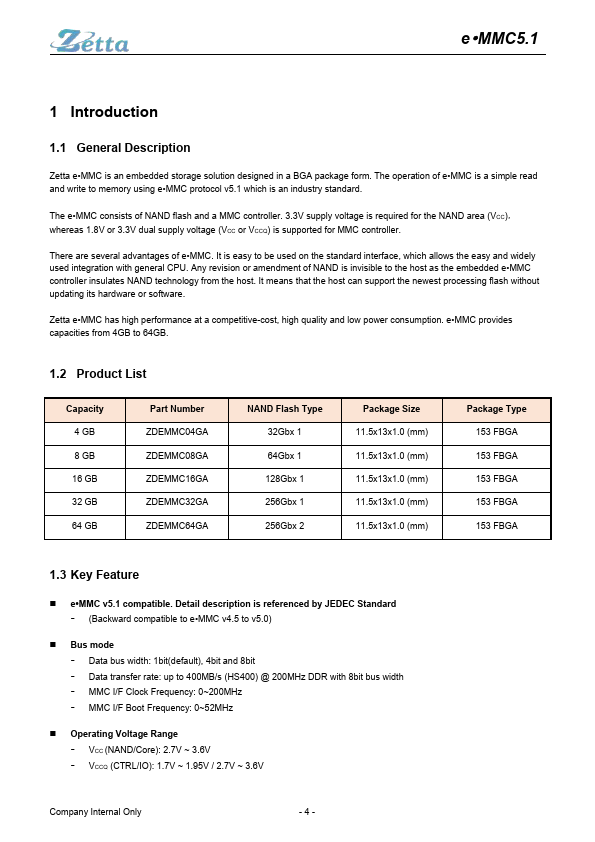

General Description Zetta e MMC is an embedded storage solution designed in a BGA package form. The operation of e MMC is a simple read and write to memory using e MMC protocol v5.1 which is an industry standard.
- MMC v5.1 compatible. Detail description is referenced by JEDEC Standard - (Backward compatible to e
- MMC v4.5 to v5.0)
- Bus mode - Data bus width: 1bit(default), 4bit and 8bit - Data transfer rate: up to 400MB/s (HS400) @ 200MHz DDR with 8bit bus width - MMC I/F Clock Frequency: 0~200MHz - MMC I/F Boot Frequency: 0~52MHz
- Operating Voltage Range - VCC (NAND/Core): 2.7V ~ 3.6V - VCCQ (CTRL/IO): 1.7V ~ 1.95V / 2.7V ~ 3.6V Company Internal Only -4-

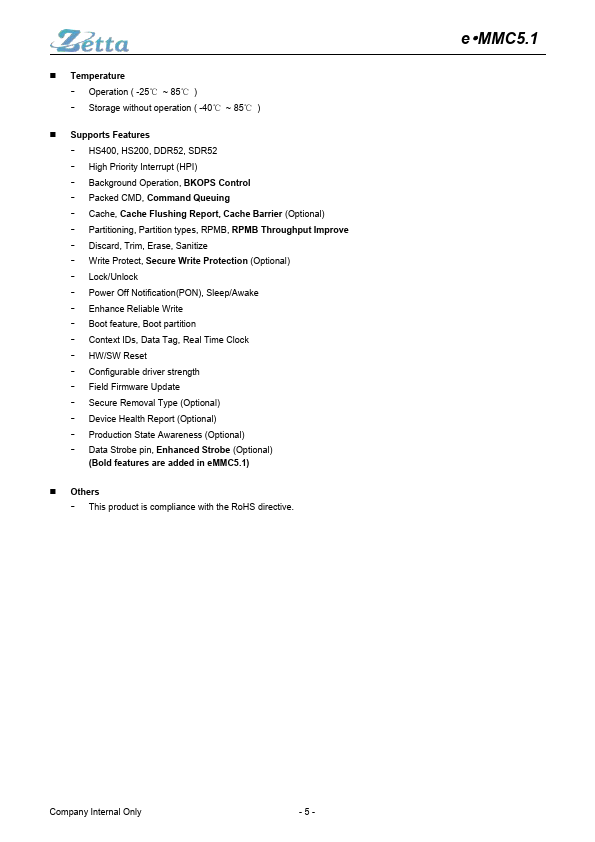

- Temperature - Operation ( -25℃ ~ 85℃ ) - Storage without
