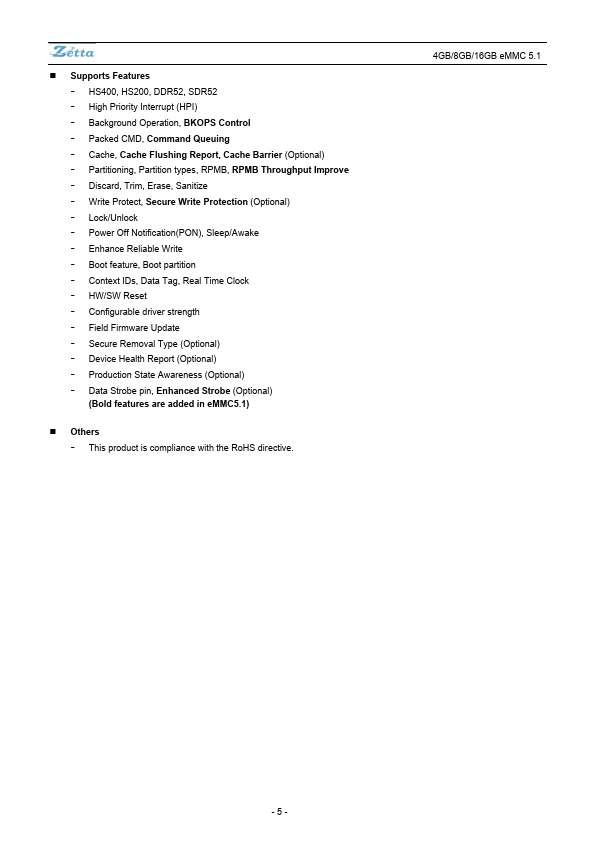

Description Zetta e- MMC is an embedded storage solution designed in a BGA package form. The operation of e- MMC is a simple read and write to memory using e- MMC protocol v5.1 which is an industry standard. The e- MMC consists of NAND flash and a MMC controller. 3.3V supply voltage is required for the NAND area (VCC)， whereas 1.8V or 3.3V dual supply voltage (VCC or VCCQ) is supported for MMC controller. There are several advantages of e- MMC. It is easy to be used on the standard interface, which allows the easy and widely used integration with general CPU. Any revision or amendment of NAND is invisible to the host as the embedded e- MMC controller insulates NAND technology from the host. It means that the host can support the newest processing flash without updating its hardware or software. Zetta e- MMC has high performance at a petitive-cost, high quality and low power consumption. e- MMC provides capacities from 4GB to 64GB. 1.2 Product List Capacity 4 GB 8 GB 16 GB Part Number ZDS30B40G ZDS27B80G ZDS21B16G NAND Flash Type MLC 32Gbx 1 MLC 64Gbx 1 MLC 128Gbx 1 Package Size 11.5x13x1.0 (mm) 11.5x13x1.0 (mm) 11.5x13x1.0 (mm) Package Type 153 FBGA 153 FBGA 153 FBGA 1.3 Key Feature - e- MMC v5.1 patible. Detail description is referenced by JEDEC Standard - (Backward patible to e- MMC v4.5 to v5.0) - Bus mode - Data bus width: 1bit(default), 4bit and 8bit - Data transfer rate: up to 400MB/s (HS400) @ 200MHz DDR with 8bit bus width - MMC I/F Clock Frequency: 0~200MHz - MMC I/F Boot Frequency: 0~52MHz - Operating Voltage Range - VCC (NAND/Core): 2.7V ~ 3.6V - VCCQ (CTRL/IO): 1.7V ~ 1.95V / 2.7V ~ 3.6V - Temperature - Operation ( -25℃ ~ 85℃ ) - Storage without operation ( -40℃ ~ 85℃ ) -4- - Supports Features - HS400, HS200, DDR52, SDR52 - High Priority Interrupt (HPI) - Background Operation, BKOPS Control - Packed CMD, mand Queuing - Cache, Cache Flushing Report, Cache Barrier (Optional) - Partitioning, Partition types, RPMB, RPMB Throughput Improve - Discard, Trim,...
