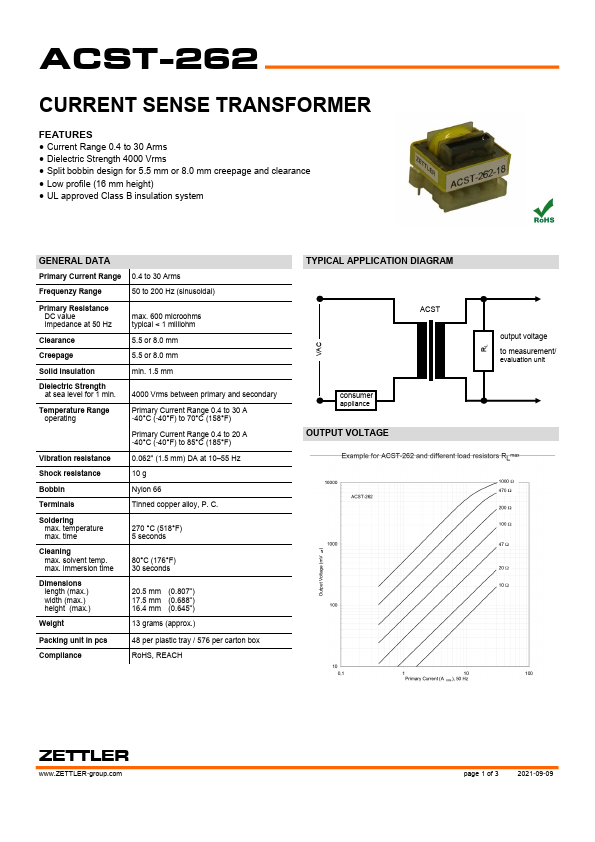

ACST-262
ACST-262 is CURRENT SENSE TRANSFORMER manufactured by ZETTLER Electronics.
CURRENT SENSE TRANSFORMER
Features
- Current Range 0.4 to 30 Arms
- Dielectric Strength 4000 Vrms
- Split bobbin design for 5.5 mm or 8.0 mm creepage and clearance
- Low profile (16 mm height)
- UL approved Class B insulation system
GENERAL DATA
Primary Current Range 0.4 to 30 Arms
Frequenzy Range
50 to 200 Hz (sinusoidal)
Primary Resistance DC value Impedance at 50 Hz max. 600 microohms typical < 1 milliohm
Clearance
5.5 or 8.0 mm
Creepage
5.5 or 8.0 mm
Solid Insulation min. 1.5 mm
Dielectric Strength at sea level for 1 min.
4000 Vrms between primary and secondary
Temperature Range operating
Primary Current Range 0.4 to 30 A -40°C (-40°F) to 70°C (158°F)
Primary Current Range 0.4 to 20 A -40°C (-40°F) to 85°C (185°F)
Vibration resistance
0.062" (1.5 mm) DA at 10- 55 Hz
Shock resistance
10 g
Bobbin
Nylon 66
Terminals
Tinned copper alloy, P....
