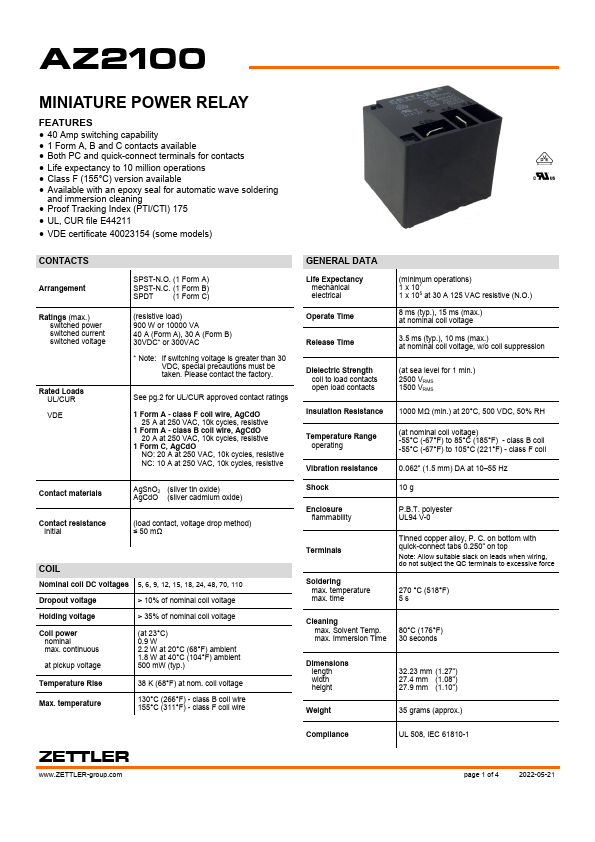

AZ2100
FEATURES
- 40 Amp switching capability
- 1 Form A, B and C contacts available
- Both PC and quick-connect terminals for contacts
- Life expectancy to 10 million operations
- Class F (155°C) version available
- Available with an epoxy seal for automatic wave soldering and immersion cleaning
- Proof Tracking Index (PTI/CTI) 175
- UL, CUR file E44211
- VDE certificate 40023154 (some models)
CONTACTS
Arrangement
Ratings (max.) switched power switched current switched voltage
Rated Loads UL/CUR VDE
Contact materials
Contact resistance initial
SPST-N.O. (1 Form A) SPST-N.C. (1 Form B) SPDT (1 Form C)
(resistive load) 900 W or 10000 VA 40 A (Form A), 30 A (Form B) 30VDC- or 300VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.

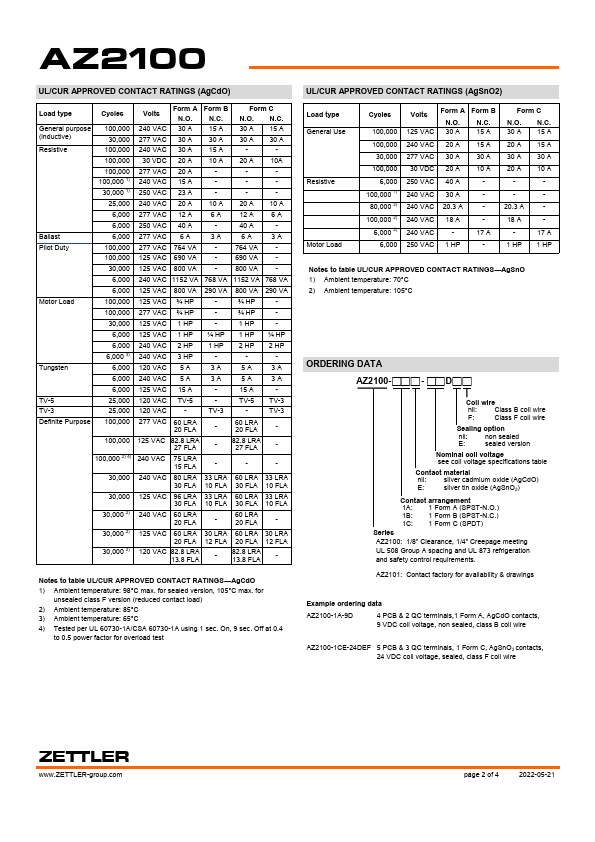

See pg.2 for UL/CUR approved contact ratings
1 Form A
- class F coil wire, Ag Cd O 25 A at 250 VAC, 10k cycles, resistive
1 Form A
- class B coil wire, Ag Cd O 20 A at 250 VAC, 10k cycles, resistive
1...
