Datasheet Summary

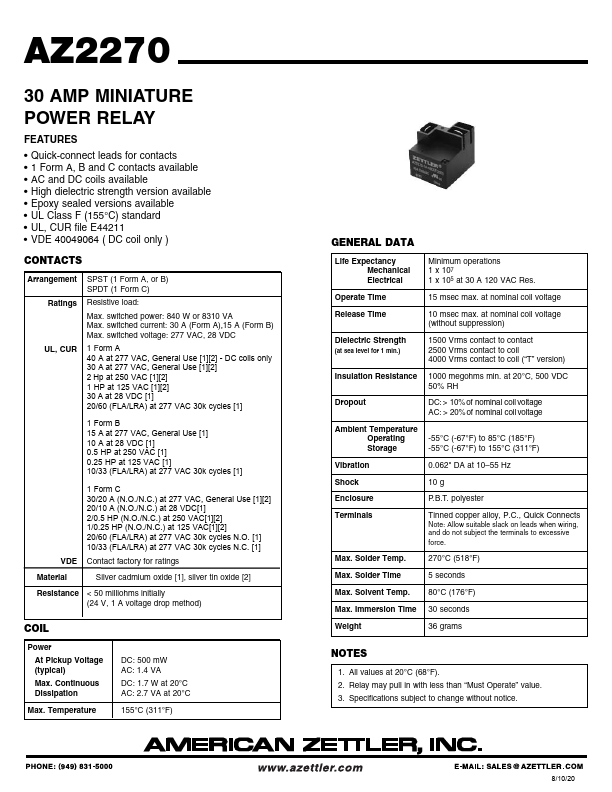

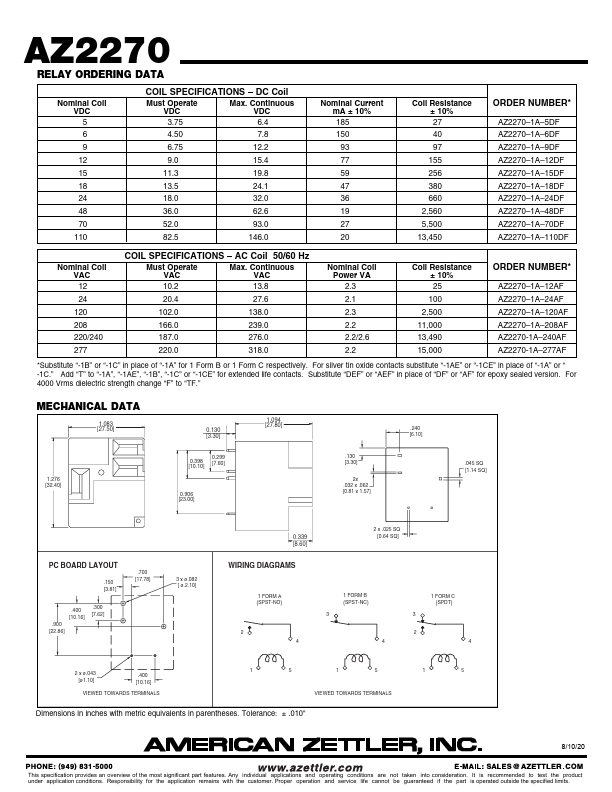

30 AMP MINIATURE POWER RELAY
Features
- Quick-connect leads for contacts
- 1 Form A, B and C contacts available
- AC and DC coils available
- High dielectric strength version available
- Epoxy sealed versions available
- UL Class F (155°C) standard
- UL, CUR file E44211
- VDE 40049064 ( DC coil only )
CONTACTS
Arrangement Ratings
UL, CUR
SPST (1 Form A, or B) SPDT (1 Form C)
Resistive load:
Max. switched power: 840 W or 8310 VA Max. switched current: 30 A (Form A),15 A (Form B) Max. switched voltage: 277 VAC, 28 VDC
1 Form A 40 A at 277 VAC, General Use [1][2]
- DC coils only 30 A at 277 VAC, General Use [1][2] 2 Hp at 250 VAC [1][2] 1 HP at 125 VAC [1][2] 30 A at 28 VDC [1]...
