AZ6991 - SENSITIVE SUBMINIATURE RELAY

Features

  • Extremely small (5mm).
  • 8 Amp switching capability.
  • High sensitivity, 95 mW pickup.
  • Dielectric strength 4000 Vrms contact to coil.
  • Isolation spacing greater than 8 mm.
  • Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1).
  • Epoxy sealed version available.
  • UL, CUR file E43203.
  • VDE certificate 40020561.

📥 Download Datasheet

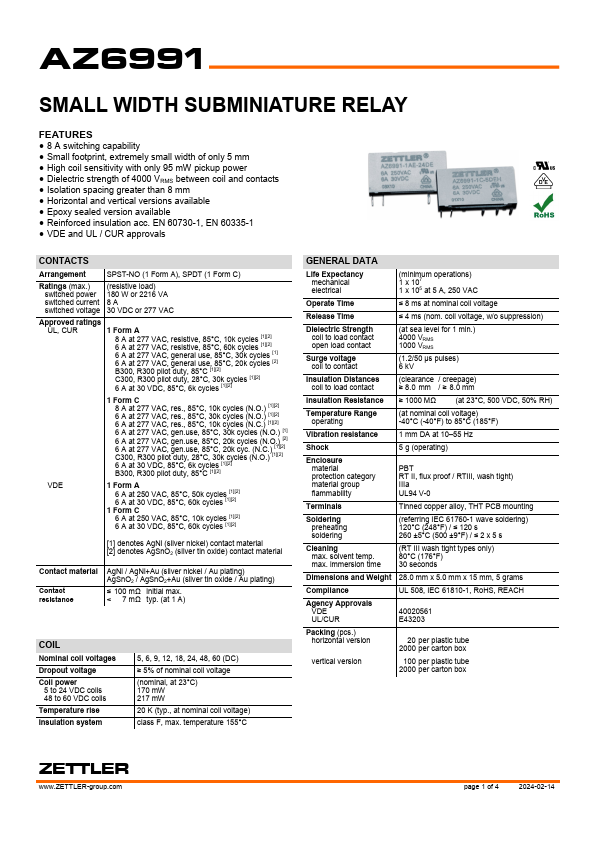

Datasheet preview – AZ6991

Datasheet Details

Part number AZ6991
Manufacturer Zettler
File Size 45.15 KB
Description SENSITIVE SUBMINIATURE RELAY
Datasheet download datasheet AZ6991 Datasheet

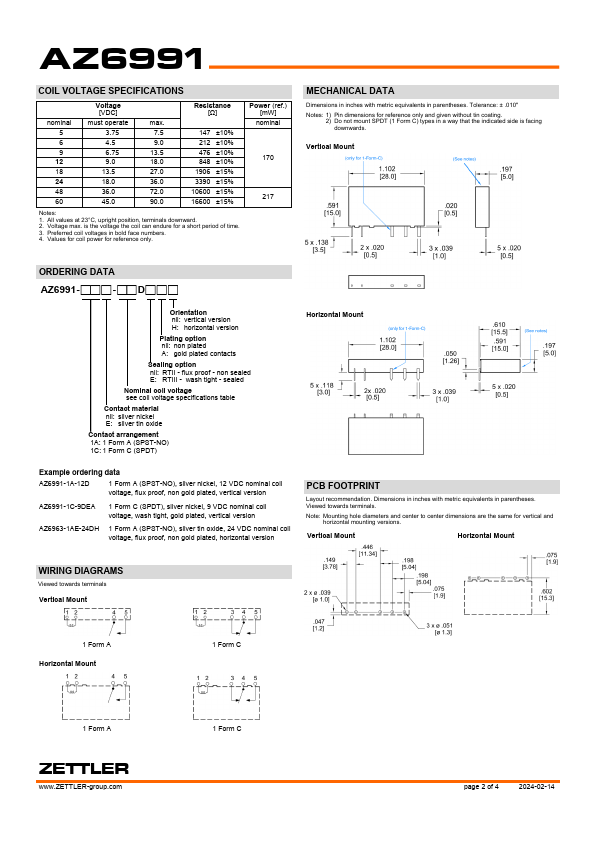

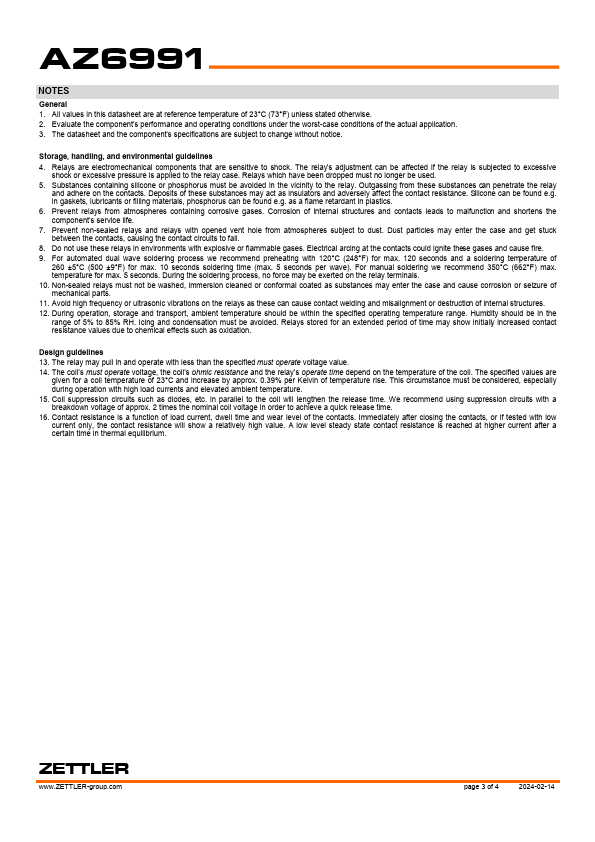

Additional preview pages of the AZ6991 datasheet.
