AZ9371 - SENSITIVE SUBMINIATURE RELAY

Key Features

  • Thin vertical profile, only 7 mm wide.
  • High sensitivity, 113 mW pickup.
  • Dielectric strength 4000 Vrms.
  • > 5,5 mm clearance and creepage.
  • 5 Amp switching capability (version “T” 10 Amp).
  • Two different footprints available.
  • Reinforced insulation (VDE 0700, 0631).
  • UL, CUR file E44211.
  • VDE certificate 40030746.

📥 Download Datasheet

Datasheet Details

Part number AZ9371
Manufacturer Zettler
File Size 45.50 KB
Description SENSITIVE SUBMINIATURE RELAY
Datasheet download datasheet AZ9371 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ937 SENSITIVE SUBMINIATURE RELAY ZETTLER Electronics
AZ9375 SUBMINIATURE RELAY American Zettler
AZ9315-01F Transient Voltage Suppressing Device msksemi
AZ934 20 AMP SUB-MINIATURE POWER RELAY ZETTLER Electronics
AZ935 20 AMP SUB-MINIATURE POWER RELAY ZETTLER Electronics

Other Datasheets by Zettler

Part Number Description
AZ9201 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ921 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ943 MINIATURE PC BOARD RELAY
AZ947 POWER RELAY
AZ9481 16 AMP LOW PROFILE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

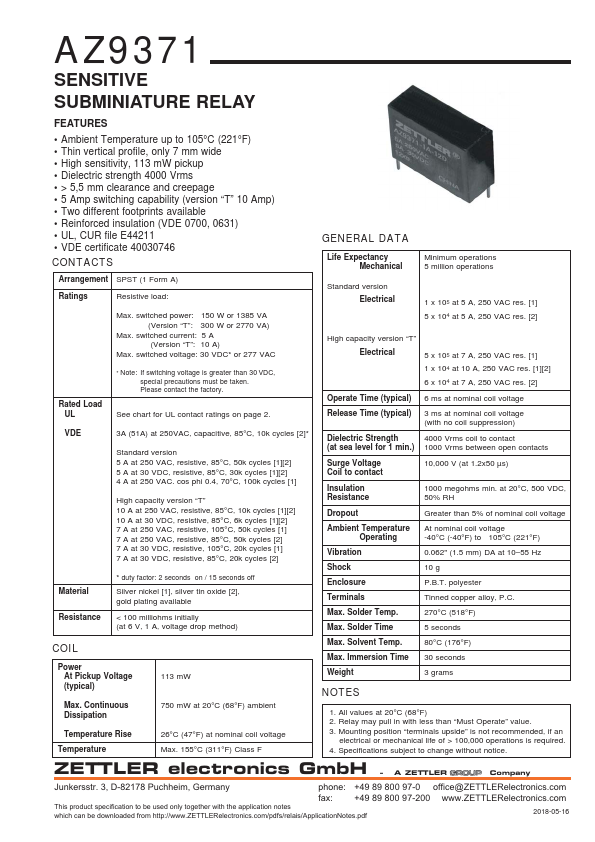

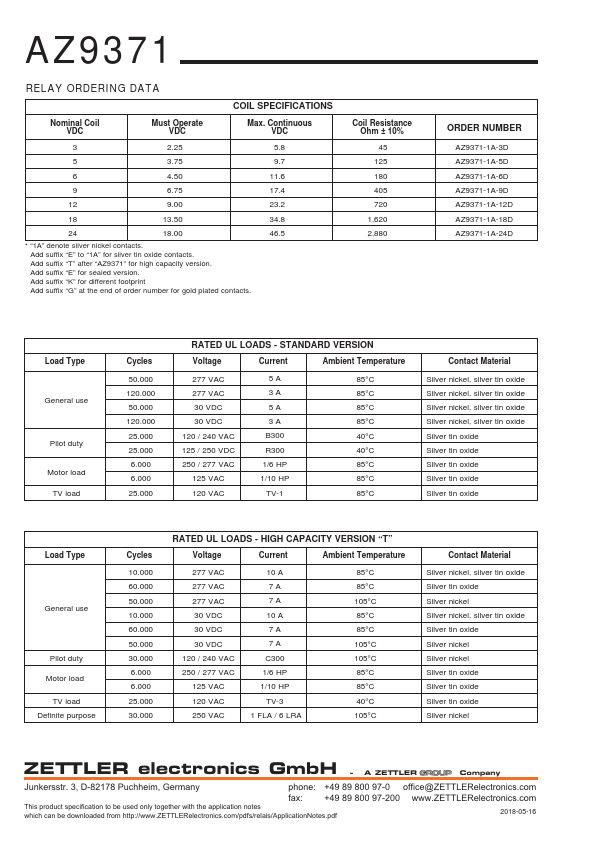

AZ9371 SENSITIVE SUBMINIATURE RELAY FEATURES • Thin vertical profile, only 7 mm wide • High sensitivity, 113 mW pickup • Dielectric strength 4000 Vrms • > 5,5 mm clearance and creepage • 5 Amp switching capability (version “T” 10 Amp) • Two different footprints available • Reinforced insulation (VDE 0700, 0631) • UL, CUR file E44211 • VDE certificate 40030746 CONTACTS Arrangement SPST (1 Form A) Ratings Resistive load: Max. switched power: 150 W or 1385 VA (Version “T”: 300 W or 2770 VA) Max. switched current: 5 A (Version “T”: 10 A) Max. switched voltage: 30 VDC* or 277 VAC Rated Load UL * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
