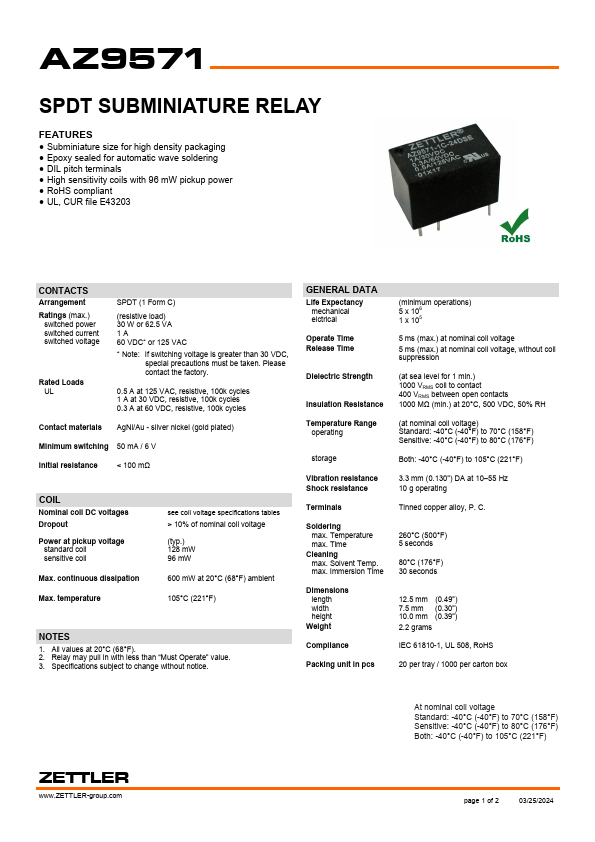

Datasheet Summary
SPDT SUBMINIATURE RELAY
Features
- Subminiature size for high density packaging
- Epoxy sealed for automatic wave soldering
- DIL pitch terminals
- High sensitivity coils with 96 mW pickup power
- RoHS pliant
- UL, CUR file E43203
CONTACTS
Arrangement Ratings (max.) switched power switched current switched voltage
Rated Loads UL
SPDT (1 Form C)
(resistive load) 30 W or 62.5 VA 1A 60 VDC- or 125 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
0.5 A at 125 VAC, resistive, 100k cycles 1 A at 30 VDC, resistive, 100k cycles 0.3 A at 60 VDC, resistive, 100k cycles
Contact materials AgNi/Au
- silver nickel (gold...
