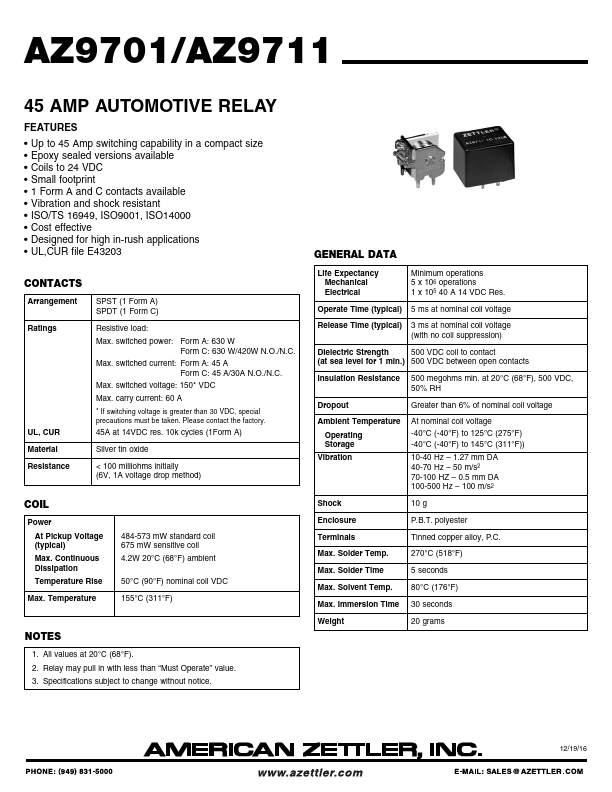

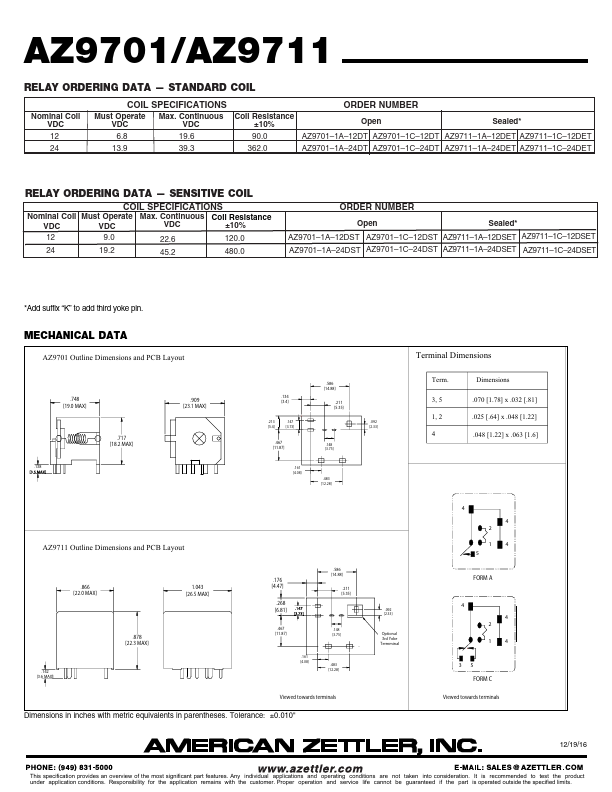

AZ9711
Overview
- Up to 45 Amp switching capability in a compact size
- Epoxy sealed versions available
- Coils to 24 VDC
- Small footprint
- 1 Form A and C contacts available
- Vibration and shock resistant
- ISO/TS 16949, ISO9001, ISO14000
- Cost effective
- Designed for high in-rush applications
- UL,CUR file E43203 CONTACTS Arrangement Ratings UL, CUR Material Resistance SPST (1 Form A) SPDT (1 Form C) Resistive load: Max. switched power: Form A: 630 W Form C: 630 W/420W N.O./N.C. Max. switched current: Form A: 45 A Form C: 45 A/30A N.O./N.C. Max. switched voltage: 150* VDC Max. carry current: 60 A * If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 45A at 14VDC res. 10k cycles (1Form A) Silver tin oxide < 100 milliohms initially (6V, 1A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max. Temperature 484-573 mW standard coil 675 mW sensitive coil 4.2W 20°C (68°F) ambient 50°C (90°F) nominal coil VDC 155°C (311°F) NOTES
