AZ9741 - 40 AMP MINI-ISO AUTOMOTIVE RELAY

Features

  • PCB terminals 40 Amp contact rating High operating temperature (125°C) Resistor or diode parallel to coil available Epoxy sealed versions available SPST (1 Form A), SPDT (1 Form C) ISO/TS 16949, ISO14001 Tested in accordance with SAE J2544.

📥 Download Datasheet

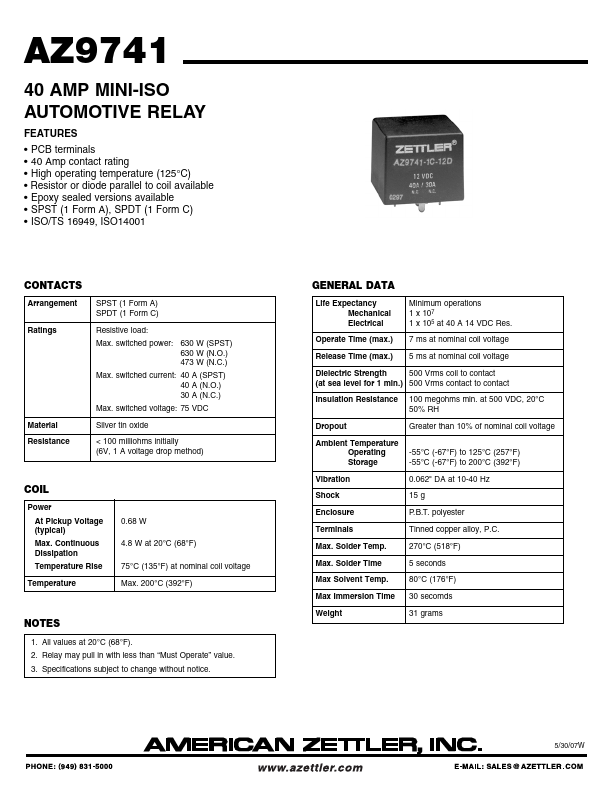

Datasheet preview – AZ9741

Datasheet Details

Part number AZ9741
Manufacturer Zettler
File Size 159.40 KB
Description 40 AMP MINI-ISO AUTOMOTIVE RELAY
Datasheet download datasheet AZ9741 Datasheet

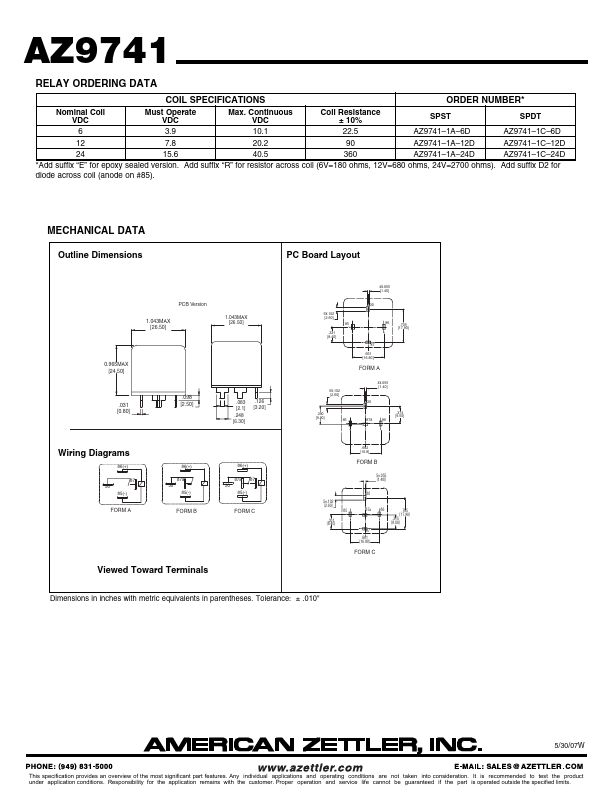

Additional preview pages of the AZ9741 datasheet.

📁 Similar Datasheet

  • AZ970 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ971 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ9731F - RELAY (American Zettler)
  • AZ9731T - RELAY (American Zettler)
  • AZ978 - MINIATURE POWER RELAY (American Zettler)
  • AZ9143-04F - TVS DIODE (Leiditech)
  • AZ920 - ULTRA-SENSITIVE SUBMINIATURE RELAY (American Zettler)
  • AZ9315-01F - Transient Voltage Suppressing Device (msksemi)
  • AZ934 - 20 AMP SUB-MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ935 - 20 AMP SUB-MINIATURE POWER RELAY (ZETTLER Electronics)
Other Datasheets by Zettler
  • AZ974 - 40 AMP MINI-ISO AUTOMOTIVE RELAY
  • AZ9701 - (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
  • AZ9701E - (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
  • AZ9711 - (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
  • AZ9711E - (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
  • AZ9721 - 40 AMP AUTOMOTIVE RELAY
  • AZ9722 - 30 AMP MINIATURE POWER RELAY
  • AZ973 - 40 AMP AUTOMOTIVE RELAY

Full PDF Text Transcription

Click to expand full text
AZ9741 40 AMP MINI-ISO AUTOMOTIVE RELAY FEATURES • • • • • • • • PCB terminals 40 Amp contact rating High operating temperature (125°C) Resistor or diode parallel to coil available Epoxy sealed versions available SPST (1 Form A), SPDT (1 Form C) ISO/TS 16949, ISO14001 Tested in accordance with SAE J2544 CONTACTS Arrangement Ratings SPST (1 Form A) SPDT (1 Form C) Resistive load: Max. switched power: 630 W (SPST) 630 W (N.O.) 473 W (N.C.) Max. switched current: 40 A (SPST) 40 A (N.O.) 30 A (N.C.) Max. switched voltage: 75 VDC Material Resistance Silver tin oxide < 100 milliohms initially (6V, 1 A voltage drop method) GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (max.) Release Time (max.) Minimum operations 1 x 107 1 x 105 at 40 A 14 VDC Res.
