TDC-GP2
Overview

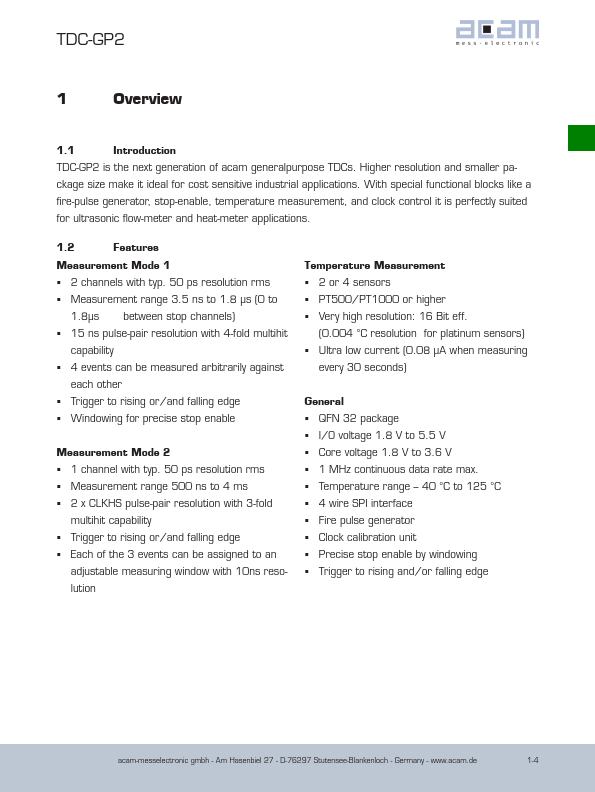

1.1 Introduction TDC-GP2 is the next generation of acam generalpurpose TDCs. Higher resolution and smaller package size make it ideal for cost sensitive industrial applications. With special functional blocks like a fire-pulse generator, stop-enable, temperature measurement, and clock control it is perfectly suited for ultrasonic flow-meter and heat-meter applications.
1.2 Features
Measurement Mode 1
- - 2 channels with typ. 50 ps resolution rms
- - Measurement range 3.5 ns to 1.8 µs (0 to
1.8µs between stop channels)
- - 15 ns pulse-pair resolution with 4-fold multihit capability
- - 4 events can be measured arbitrarily against each other
- - Trigger to rising or/and falling edge
- - Windowing for precise stop enable
Measurement Mode 2
- - 1 channel with typ. 50 ps resolution rms
- - Measurement range 500 ns to 4 ms
- - 2 x CLKHS pulse-pair resolution with 3-fold multihit capability
- - Trigger to rising or/and falling edge
- - Each of the 3 events can be assigned to an...
