AS3932 - 3D Low Frequency Wakeup Receiver

General Description

The AS3932 is a 3-channel low power ASK receiver that is able to generate a wake-up upon detection of a data signal which uses a LF carrier frequency between 110 - 150 kHz.

The integrated correlator can be used for detection of a programmable 16-bit wake-up pattern.

Key Features

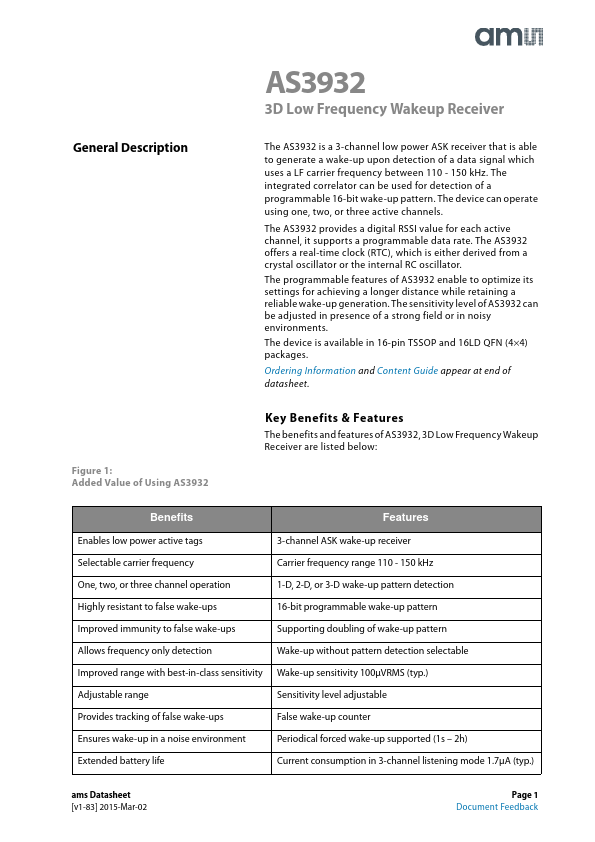

  • of AS3932 enable to optimize its settings for achieving a longer distance while retaining a reliable wake-up generation. The sensitivity level of AS3932 can be adjusted in presence of a strong field or in noisy environments. The device is available in 16-pin TSSOP and 16LD QFN (4×4) packages. Ordering Information and Content Guide appear at end of datasheet. Figure 1: Added Value of Using AS3932 Key Benefits & Features The benefits and features of AS3932, 3D Low Frequency Wakeup Receiver are l.

📥 Download Datasheet

Datasheet Details

Part number AS3932
Manufacturer ams
File Size 814.87 KB
Description 3D Low Frequency Wakeup Receiver
Datasheet download datasheet AS3932 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AS3932 3D Low Frequency Wakeup Receiver austriamicrosystems AG
AS393 LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS Diodes
AS393 LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS BCD Semiconductor
AS3930 Single Channel Low Frequency Wakeup Receiver austria microsystems
AS3931 3D Low Power Wake-up Receiver austriamicrosystems AG

Other Datasheets by ams

Part Number Description
AS3930 Single Channel Low Frequency Wakeup Receiver
AS3933 3D Low Frequency Wake-Up Receiver
AS3935 Franklin Lightning Sensor
AS3909 13.56 MHz RFID Reader
AS3910 13.56 MHz RFID Reader

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
AS3932 3D Low Frequency Wakeup Receiver General Description The AS3932 is a 3-channel low power ASK receiver that is able to generate a wake-up upon detection of a data signal which uses a LF carrier frequency between 110 - 150 kHz. The integrated correlator can be used for detection of a programmable 16-bit wake-up pattern. The device can operate using one, two, or three active channels. The AS3932 provides a digital RSSI value for each active channel, it supports a programmable data rate. The AS3932 offers a real-time clock (RTC), which is either derived from a crystal oscillator or the internal RC oscillator. The programmable features of AS3932 enable to optimize its settings for achieving a longer distance while retaining a reliable wake-up generation.
