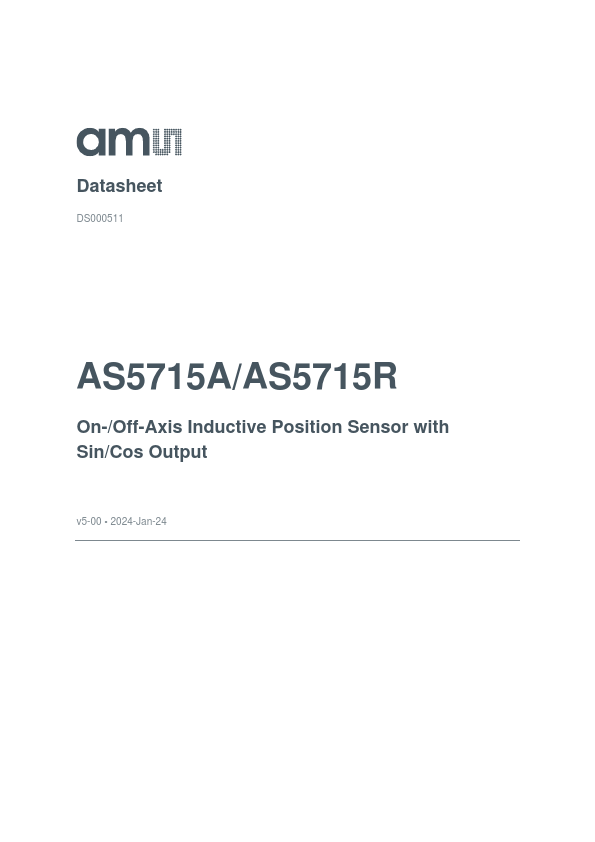

AS5715R datasheet by ams.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | AS5715R |
|---|---|
| Datasheet | AS5715R AS5715A Datasheet (PDF) |
| File Size | 877.48 KB |
| Manufacturer | ams |
| Description | On-/Off-Axis Inductive Position Sensor |
|
|

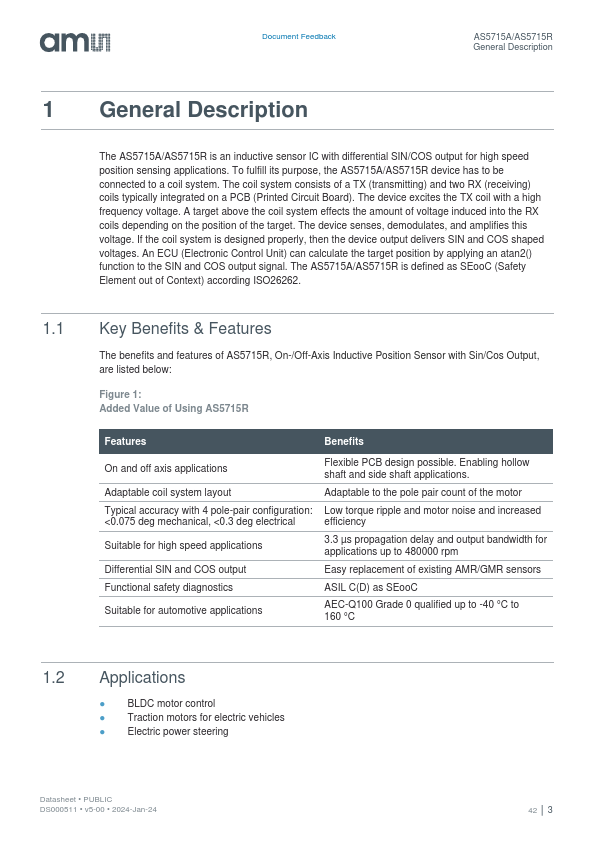

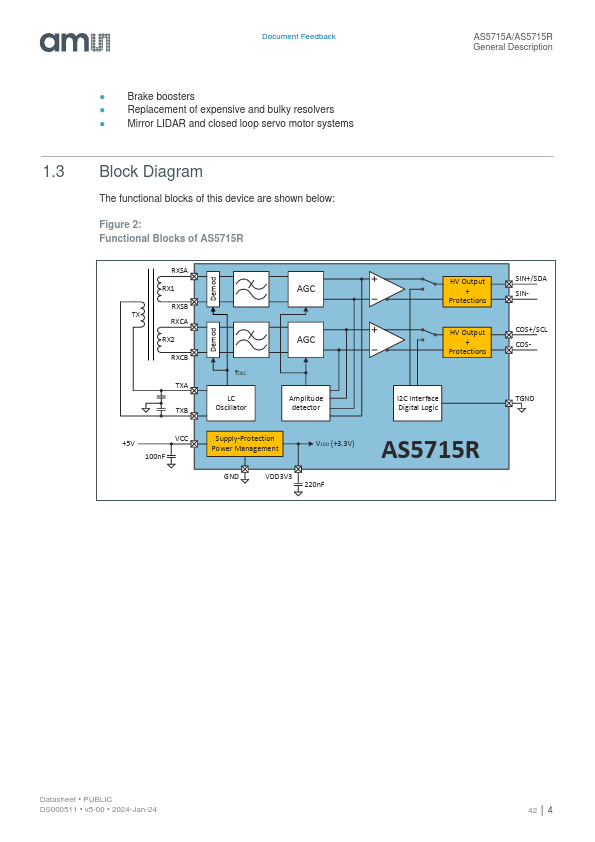

1 General Description The AS5715A/AS5715R is an inductive sensor IC with differential SIN/COS output for high speed position sensing applications. To fulfill its purpose, the AS5715A/AS5715R device has to be connected to a coil system. The coil system consists of a TX (transmitting) and two RX (receiving) coils typically integrated on a PCB (Printed Circuit Board).
