AS72651 - Smart 6-Channel NIR Spectral_ID Sensor

General Description

The AS72651 is a digital 6-channel multi-spectral sensor for spectral identification in the near IR light wavelengths, serving as master controller for the AS7265x chip-set.

Key Features

  • The benefits and features of AS72651, Smart 6-Channel NIR Spectral_ID Sensor with Electronic Shutter and 18-Channel AS7265x Master Capability are listed below: Figure 1: AS7265x Chip-Set Benefits and Features Benefits.
  • Compact 18-channel spectrometry chip-set solution.
  • No additional signal conditioning required Features.
  • Master device for 3 chip set delivering 18 visible and NIR channels from 410nm to 940nm each with 20nm FWHM.
  • UART or I²C slave digital Inte.

📥 Download Datasheet

Datasheet Details

Part number AS72651
Manufacturer ams
File Size 952.59 KB
Description Smart 6-Channel NIR Spectral_ID Sensor
Datasheet download datasheet AS72651 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AS7620 500mA Hysteretic High Voltage Step-Down Converter austriamicrosystems AG
AS7787-A ADSL Transformers Coilcraft
AS7805A 1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR Diodes
AS7806A 1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR Diodes
AS7808A 1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR Diodes

Other Datasheets by ams

Part Number Description
AS72652 Smart 18-Channel VIS to NIR Spectral_ID 3-Sensor
AS72653 Smart 18-Channel VIS to NIR Spectral_ID 3-Sensor
AS7261 XYZ Chromatic White Color Sensor
AS7262 6-Channel Visible Spectral_ID Device
AS7263 6-Channel NIR Spectral_ID Device

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

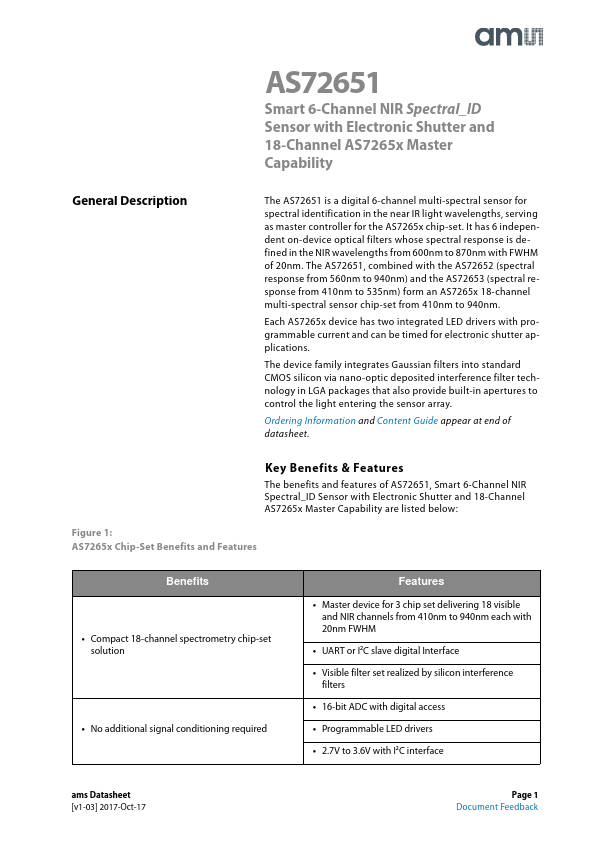

AS72651 Smart 6-Channel NIR Spectral_ID Sensor with Electronic Shutter and 18-Channel AS7265x Master Capability General Description The AS72651 is a digital 6-channel multi-spectral sensor for spectral identification in the near IR light wavelengths, serving as master controller for the AS7265x chip-set. It has 6 independent on-device optical filters whose spectral response is defined in the NIR wavelengths from 600nm to 870nm with FWHM of 20nm. The AS72651, combined with the AS72652 (spectral response from 560nm to 940nm) and the AS72653 (spectral response from 410nm to 535nm) form an AS7265x 18-channel multi-spectral sensor chip-set from 410nm to 940nm. Each AS7265x device has two integrated LED drivers with programmable current and can be timed for electronic shutter applications.
