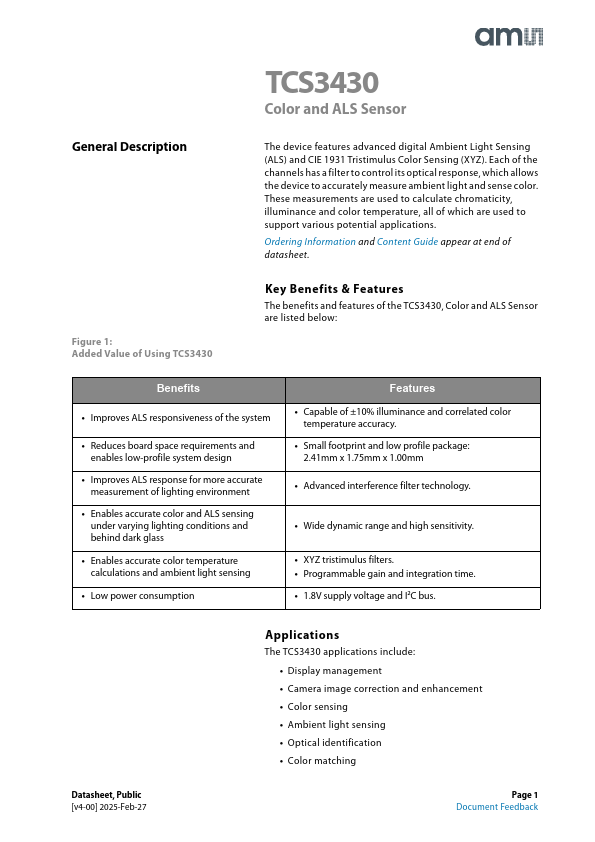

TCS3430
TCS3430 is Color and ALS Sensor manufactured by ams.
Color and ALS Sensor
General Description
The device Features advanced digital Ambient Light Sensing (ALS) and CIE 1931 Tristimulus Color Sensing (XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color. These measurements are used to calculate chromaticity, illuminance and color temperature, all of which are used to support various potential applications.
Ordering Information and Content Guide appear at end of datasheet.
Figure 1: Added Value of Using TCS3430
Key Benefits & Features
The benefits and Features of the TCS3430, Color and ALS Sensor are listed below:
Benefits
- Improves ALS responsiveness of the system
- Reduces board space requirements and enables low-profile system design
- Improves ALS response for more accurate measurement of lighting environment
- Enables accurate color and ALS sensing under varying lighting conditions and behind dark glass
- Enables accurate color temperature calculations and ambient light sensing
- Low power consumption
Features
- Capable of ±10% illuminance and correlated color temperature accuracy.
- Small footprint and low profile package: 2.41mm x 1.75mm x 1.00mm
- Advanced interference filter technology.
- Wide dynamic range and high sensitivity.
- XYZ tristimulus filters.
- Programmable gain and integration time.
- 1.8V supply voltage and I²C bus.
Datasheet, Public [v4-00] 2025-Feb-27
Applications
The TCS3430 applications include:
- Display management
- Camera image correction and enhancement
- Color sensing
- Ambient light sensing
- Optical...
