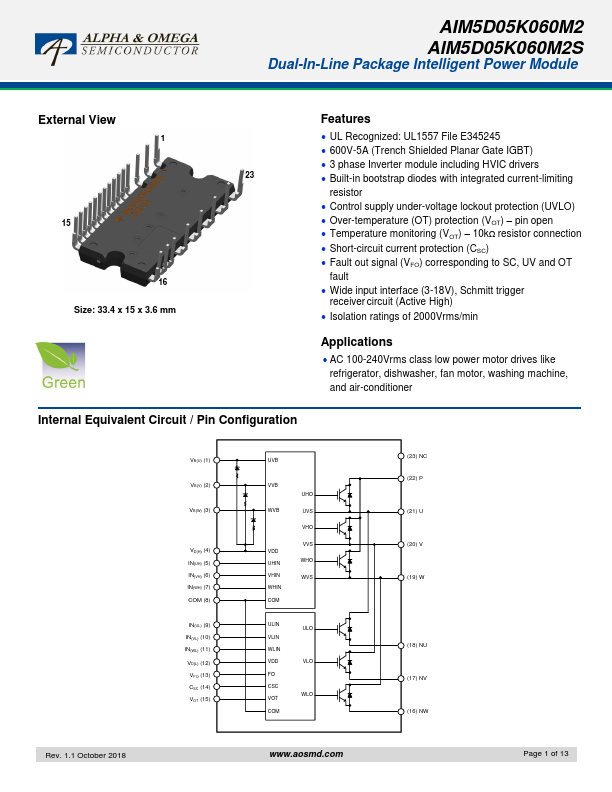

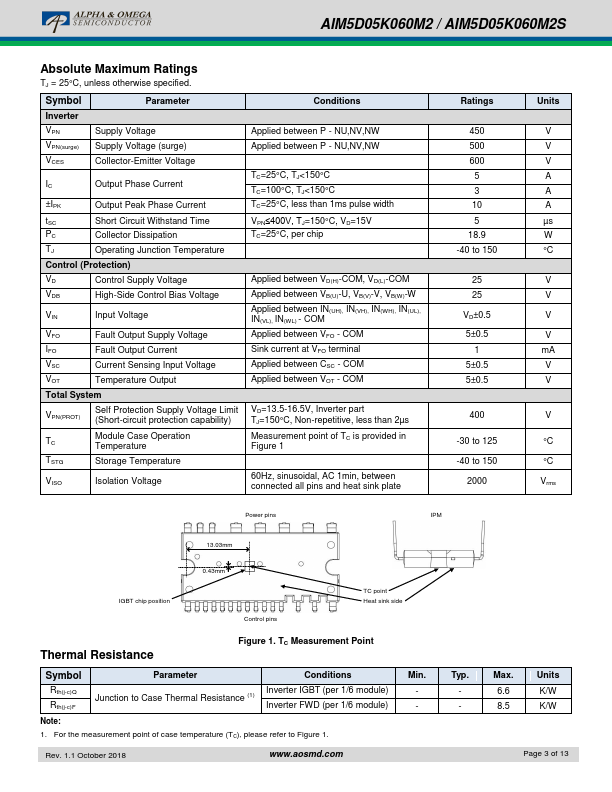

AIM5D05K060M2S
Features
- UL Recognized: UL1557 File E345245
- 600V-5A (Trench Shielded Planar Gate IGBT)
- 3 phase Inverter module including HVIC drivers
- Built-in bootstrap diodes with integrated current-limiting resistor
- Control supply under-voltage lockout protection (UVLO)
- Over-temperature (OT) protection (VOT)
- pin open
- Temperature monitoring (VOT)
- 10kΩ resistor connection
- Short-circuit current protection (CSC)
- Fault out signal (VFO) corresponding to SC, UV and OT fault
- Wide input interface (3-18V), Schmitt trigger receiver circuit (Active High)
- Isolation ratings of 2000Vrms/min
Applications
- AC 100-240Vrms class low power motor drives like refrigerator, dishwasher, fan motor, washing machine, and air-conditioner
Internal Equivalent Circuit / Pin Configuration
VB(U) (1)
VB(V) (2)
VB(W) (3)
VD(H) (4) IN(UH) (5) IN(VH) (6) IN(WH) (7) (8)
IN(UL) (9) IN(VL) (10) IN(WL) (11) VD(L) (12)
VFO (13) CSC (14) VOT (15)
VDD UHIN VHIN WHIN
UHO UVS VHO...
