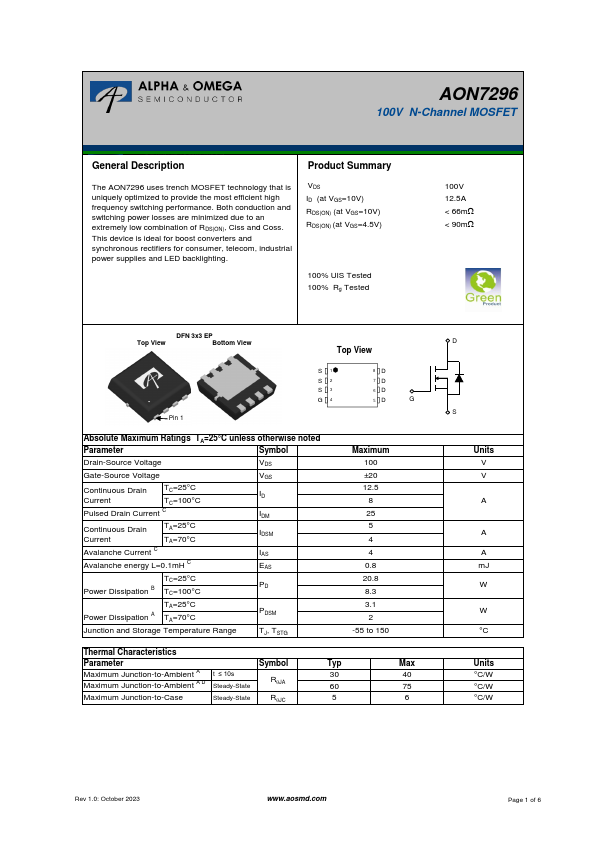

AON7296
Description
The AON7296 uses trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low bination of RDS(ON), Ciss and Coss. This device is ideal for boost converters and synchronous rectifiers for consumer, tele, industrial power supplies and LED backlighting.
Product Summary
VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V)
100% UIS Tested 100% Rg Tested
100V 12.5A < 66m W < 90m W
DFN 3x3 EP
Top View
Bottom View
Top View
Pin 1
S1 S2 S3 G4
8D
7D
6D
5D
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
TC=25°C TC=100°C
Pulsed Drain Current C
Continuous Drain Current
TA=25°C TA=70°C
IDSM
Avalanche Current C
Avalanche energy L=0.1m H C
TC=25°C Power Dissipation B TC=100°C
TA=25°C Power...
