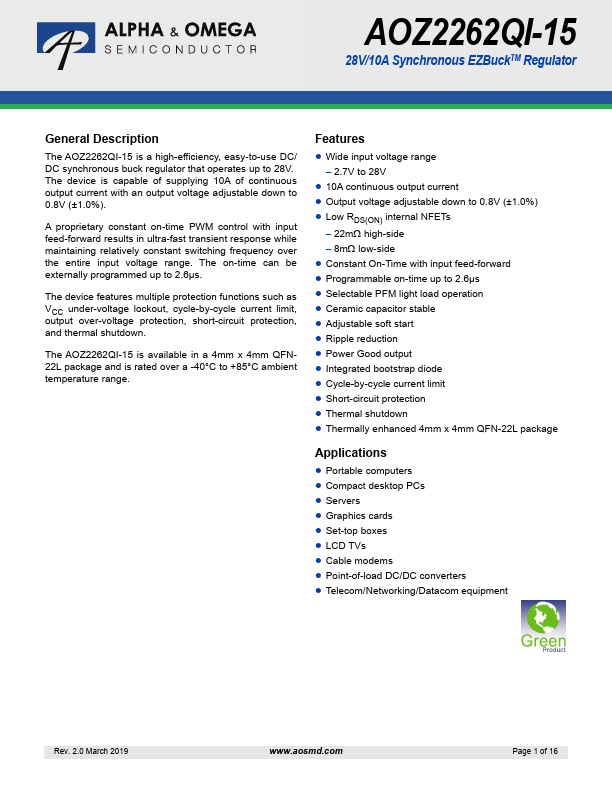

AOZ2262QI-15
Description
The AOZ2262QI-15 is a high-efficiency, easy-to-use DC/ DC synchronous buck regulator that operates up to 28V. The device is capable of supplying 10A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%).
A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range. The on-time can be externally programmed up to 2.6µs.
The device features multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown.
The AOZ2262QI-15 is available in a 4mm x 4mm QFN22L package and is rated over a -40°C to +85°C ambient temperature range.
Features
- Wide input voltage range
- 2.7V to 28V
- 10A continuous output current
- Output voltage adjustable down to 0.8V (±1.0%)
- Low RDS(ON) internal NFETs
- 22m high-side
-...
