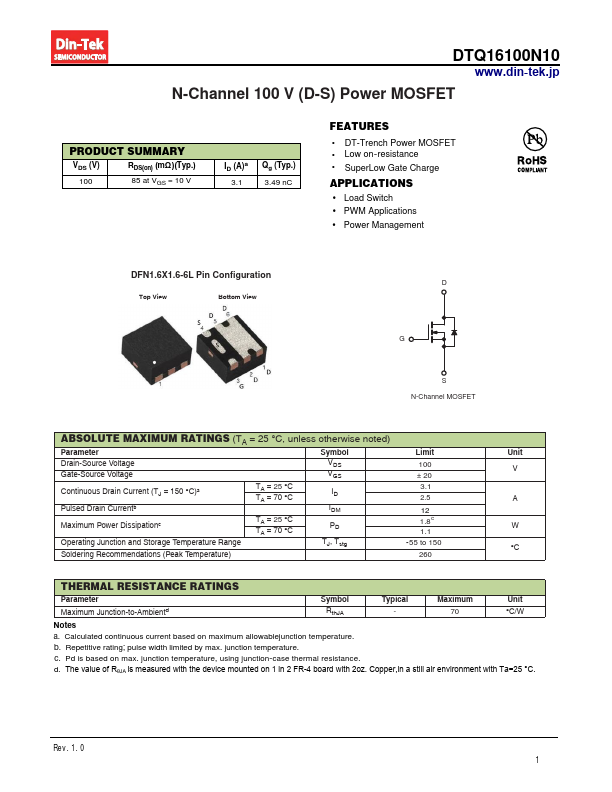

DTQ16100N10
FEATURES
- DT-Trench Power MOSFET
- Low on-resistance
- Super Low Gate Charge
APPLICATIONS
- Load Switch
- PWM Applications
- Power Management
DFN1.6X1.6-6L Pin Configuration
Top View
Bottom View
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
± 20
Continuous Drain Current (TJ = 150 °C)a
TA = 25 °C TA = 70 °C
Pulsed Drain Currentb
Maximum Power Dissipationc
TA = 25 °C TA = 70 °C
1.8c
Operating Junction and Storage Temperature Range Soldering Remendations (Peak Temperature)
TJ, Tstg
-55 to 150
°C
THERMAL RESISTANCE RATINGS
Parameter Maximum Junction-to-Ambientd...
