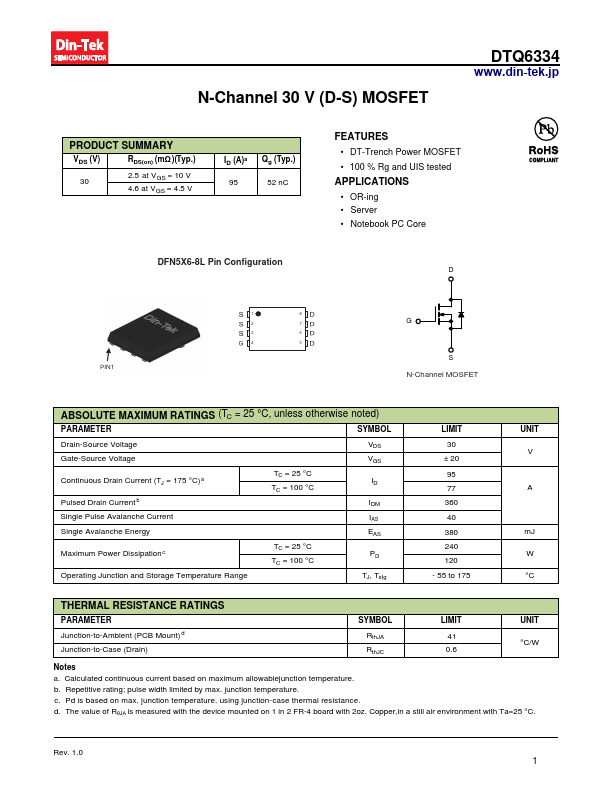

DTQ6334
FEATURES
- DT-Trench Power MOSFET
- 100 % Rg and UIS tested
APPLICATIONS
- OR-ing
- Server
- Notebook PC Core
DFN5X6-8L Pin Configuration
PIN1
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage Gate-Source Voltage
Continuous Drain Current (TJ = 175 °C)a
Pulsed Drain Current b Single Pulse Avalanche Current
VDS VGS TC = 25 °C ID TC = 100 °C IDM IAS
Single Avalanche Energy
Maximum Power Dissipationc Operating Junction and Storage Temperature Range
TC = 25 °C TC = 100 °C
PD TJ, Tstg
LIMIT 30 ± 20 95 77 360 40 380 240 120
- 55 to 175
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER Junction-to-Ambient (PCB Mount) d Junction-to-Case (Drain)
SYMBOL Rth JA Rth JC
LIMIT 41 0.6
UNIT °C/W
Notes a. Calculated continuous current based on maximum allowablejunction temperature. b. Repetitive rating; pulse width limited by max. junction temperature. c. Pd is based on max....
