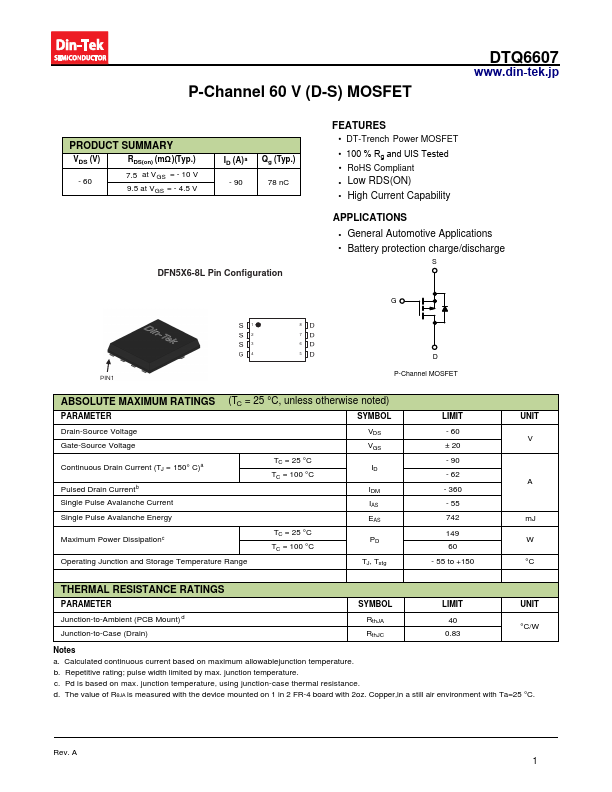

DTQ6607
FEATURES
- DT-Trench Power MOSFET
- 15J DQG8,67HVWHG
- Ro HS pliant Low RDS(ON) High Current Capability
APPLICATIONS General Automotive Applications Battery protection charge/discharge
PIN1
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (TJ = 150° C)a
Pulsed Drain Currentb Single Pulse Avalanche Current
TC = 25 °C ID
TC = 100 °C IDM IAS
Single Pulse Avalanche Energy Maximum Power Dissipationc
EAS TC = 25 °C
PD TC = 100 °C
Operating Junction and Storage Temperature Range
TJ, Tstg
LIMIT
- 60 ± 20
- 90
- 62
- 360
- 55 742 149 60
- 55 to...
