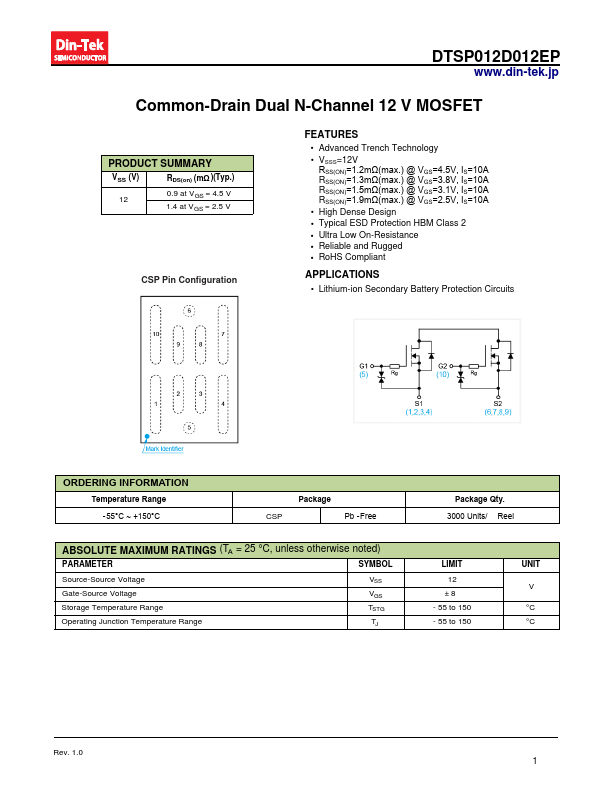

DTSP012D012EP
FEATURES
- Advanced Trench Technology
- VSSS=12V
RSS(ON)=1.2mΩ(max.) @ VGS=4.5V, IS=10A RSS(ON)=1.3mΩ(max.) @ VGS=3.8V, IS=10A RSS(ON)=1.5mΩ(max.) @ VGS=3.1V, IS=10A RSS(ON)=1.9mΩ(max.) @ VGS=2.5V, IS=10A
- High Dense Design
- Typical ESD Protection HBM Class 2
- Ultra Low On-Resistance
- Reliable and Rugged
- Ro HS pliant
APPLICATIONS
Lithium-ion Secondary Battery Protection Circuits
ORDERING INFORMATION
Temperature Range -55°C ~ +150°C
Package
Pb -Free
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Source-Source Voltage
Gate-Source Voltage Storage Temperature Range
VGS TSTG
Operating Junction Temperature Range
Package Qty. 3000 Units/ Reel
LIMIT 12 ±8
- 55 to 150
- 55 to 150
UNIT V °C °C
Rev. 1.0

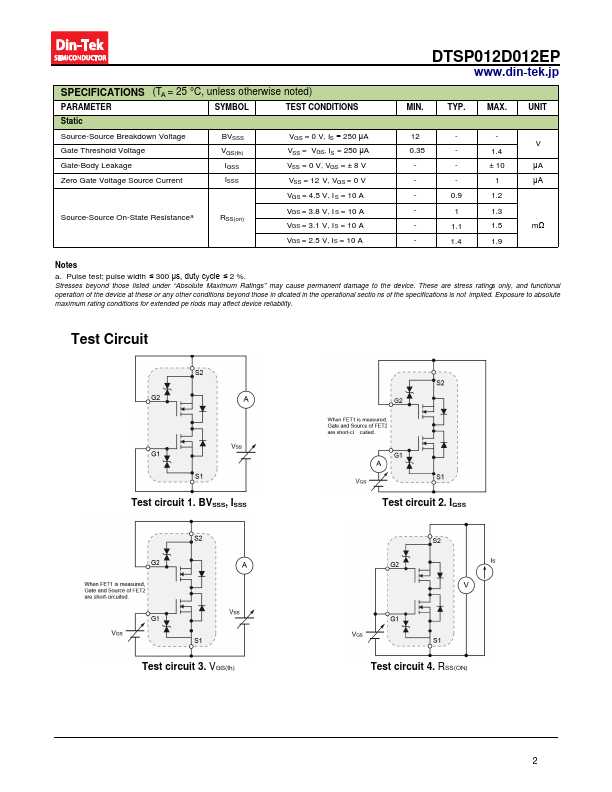

SPECIFICATIONS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
Static
Source-Source Breakdown Voltage Gate Threshold Voltage Gate-Body Leakage Zero Gate Voltage Source Current
BVSSS VGS(th) IGSS...
