DTSP19D02EP
FEATURES
- Advanced Trench Technology
- Super High Dense Cell for Low RSS(ON)
- ESD Protected
APPLICATIONS Battery Protection Load Switch

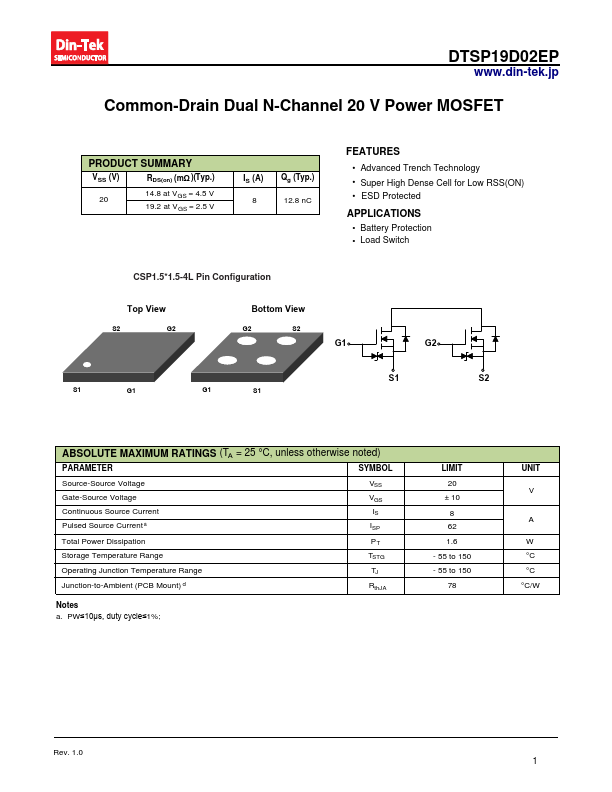

CSP1.5- 1.5-4L Pin Configuration
Top View
Bottom View
S2
G2
G2
S2
G1
G2
S1
G1
G1
S1
S1
S2
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Source-Source Voltage
Gate-Source Voltage
Continuous Source Current
Pulsed Source Current a
Total Power Dissipation Storage Temperature Range
PT TSTG
Operating Junction Temperature Range
Junction-to-Ambient (PCB Mount) d
Rth JA
Notes a. PW≤10μs, duty cycle≤1%;
LIMIT 20 ± 10 8 62 1.6
- 55 to...
