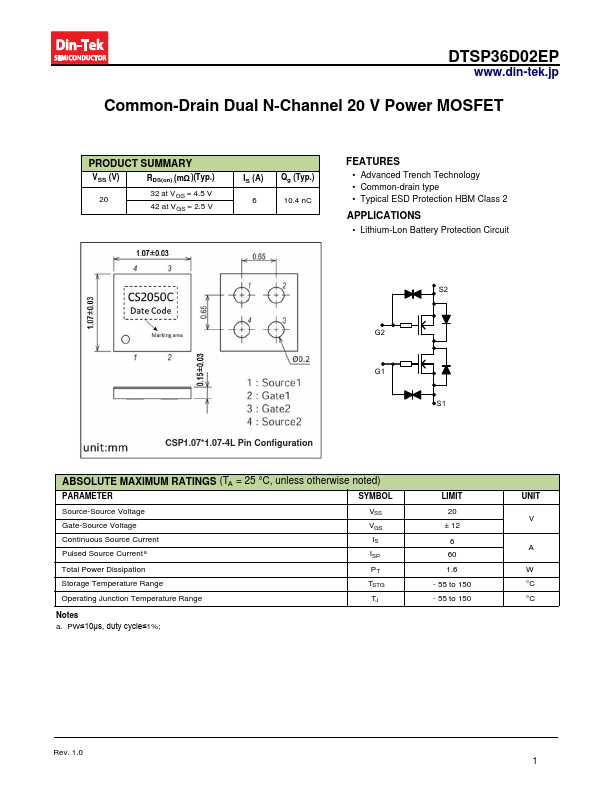

DTSP36D02EP
FEATURES
- Advanced Trench Technology
- mon-drain type
- Typical ESD Protection HBM Class 2
APPLICATIONS Lithium-Lon Battery Protection Circuit
G2 G1
CSP1.07- 1.07-4L Pin Configuration
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Source-Source Voltage
Gate-Source Voltage
Continuous Source Current
Pulsed Source Current a
Total Power Dissipation Storage Temperature Range Operating Junction Temperature Range
PT TSTG TJ
Notes a. PW≤10μs, duty cycle≤1%;
S2
S1
LIMIT 20 ± 12 6 60 1.6
- 55 to 150
- 55 to 150
UNIT V
A W °C °C
Rev. 1.0
.din-tek.jp

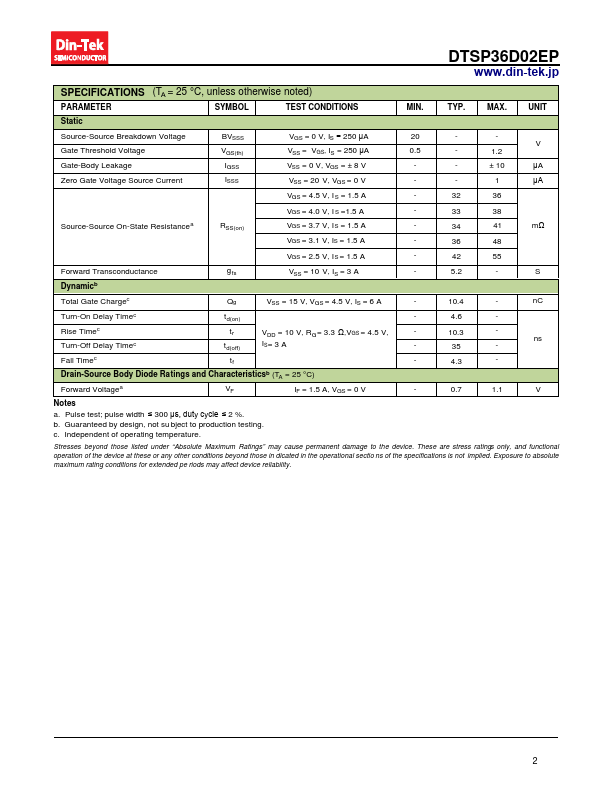

SPECIFICATIONS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
Static
Source-Source Breakdown Voltage Gate Threshold Voltage Gate-Body Leakage Zero Gate Voltage Source...
