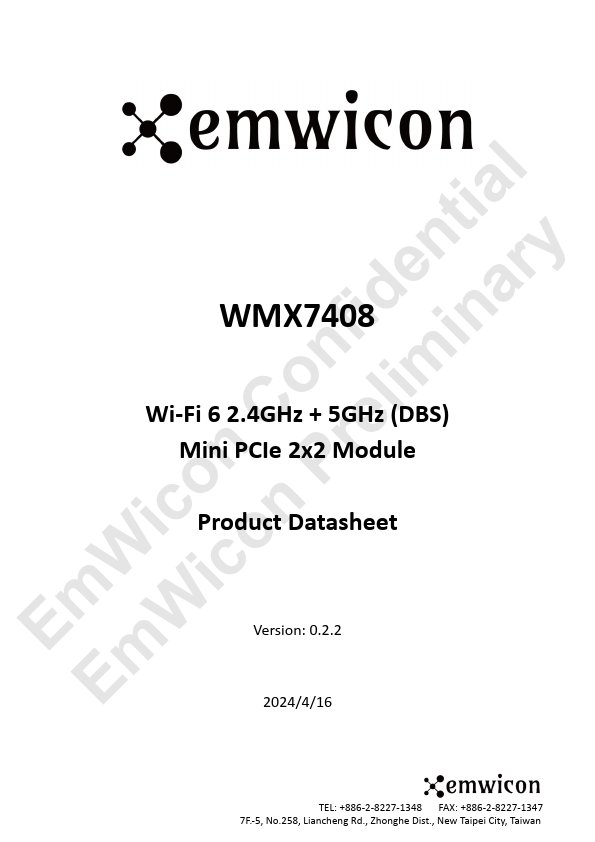

fidenitniaalry WMX7408 on lim Wi-Fi 6 2.4GHz + 5GHz (DBS) C re Mini PCIe 2x2 Module icon n P Product Datasheet m W Wico Version: 0.2.2 E Em 2024/4/16 TEL: +886-2-8227-1348 FAX: +886-2-8227-1347 7F.-5, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City, Taiwan TEL: +886-2-8227-1348 FAX: +886-2-8227-1347 7F.-5, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City, Taiwan 1 Overview The WMX7408 enterprise module is a highly integrated mini PCIe module for wireless local area networks (WLANs). This module is built on the Resesas Celeno CL8040 chip and serves as an 802.11ax l Wi-Fi 6 PCIe radio designed specifically for Enterprise Access Points and Campus deployments. ia 2 Feature nt y 2.1 System e r - Concurrent Dual Band, Dual Transceiver, Dual Function id a - 2T2R+2T2R (total 4T4R) Flexible MIMO Architecture f in - Up to 4.8Gbps data link speed - Enhanced spectrum coverage, ready for UNII-4 (up to 5925 MHz) n - Low Power consumption with Advanced Power Management o lim 2.2 WLAN - Wi-Fi 6 (802.11ax) R2 support C e - 802.11a/b/g/n/ac support r - DL/UL MU-OFDMA support n - DL/UL MU-MIMO support o P - Beam Forming support - Uplink Scheduling ic n - QAM 1024 (MCS 10, 11) modulation - 20 / 40 / 80 / 160 MHz support in 5GHz o - 20 / 40 MHz support in 2.4GHz W ic - Target-Wait-Time - Supports High Efficiency, Very High Throughput, High Throughput and Legacy m- WEP 64/128, WPA, WPA2, WPA3 (including 192-bit Enterprise mode), AES, TKIP W - Per Packet Dynamic Tx Power Control E - Optimal handling of strong interference (jammer) and near station signals m - Qo S-WMM, WMM-PS, WMM-ACM - Wi-Fi Direct, Wi-Fi Display, WPS 2.0, TDLS, Hotspot 2.0 support E- Support IEEE 802.11.d, h, e, I, k, r, v, w standards - Multiple BSSID Support - Dynamic Frequency Selection (DFS) in required bands and...
