AM6441 Datasheet Processors

Manufacturer: Texas Instruments

Overview: AM6442, AM6441, AM6422, AM6421, AM6412, AM6411 SPRSP56F – JANUARY 2021 – REVISED OCTOBER 2023 AM64x Sitara™ Processors.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

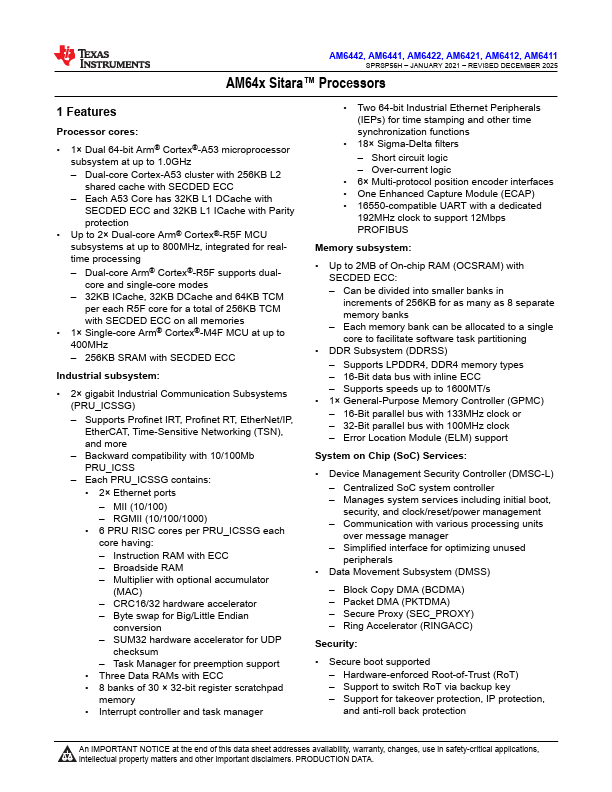

Processor cores:.
1× Dual 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.0 GHz.
Dual-core Cortex-A53 cluster with 256KB L2 shared cache with SECDED ECC.
Each A53 Core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with Parity protection.
Up to 2× Dual-core Arm® Cortex®-R5F MCU subsystems at up to 800 MHz, integrated for realtime processing.
Dual-core Arm® Cortex®-R5F supports dualcore and single-core modes.
32KB ICache, 32.

Brand Logo	Part Number	Description	Manufacturer
	AM6441P	P-Channel MOSFET	Analog Power
