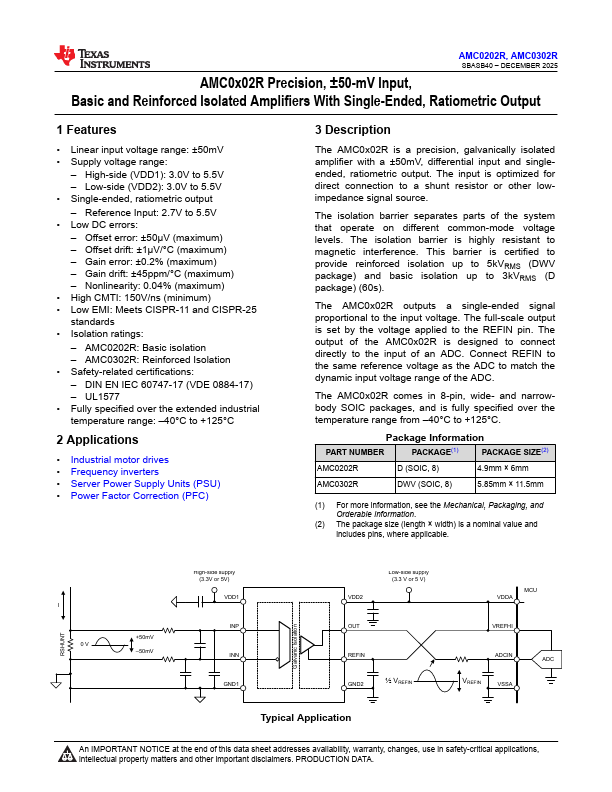

AMC0202R Description
The AMC0x02R is a precision, galvanically isolated amplifier with a ±50mV, differential input and singleended, ratiometric output. The input is optimized for direct connection to a shunt resistor or other lowimpedance signal source. The isolation barrier separates parts of the system that operate on different mon-mode voltage levels.
AMC0202R Key Features
- Linear input voltage range: ±50mV
- Supply voltage range
- High-side (VDD1): 3.0V to 5.5V
- Low-side (VDD2): 3.0V to 5.5V
- Single-ended, ratiometric output
- Reference Input: 2.7V to 5.5V
- Low DC errors
- Offset error: ±50µV (maximum)
- Offset drift: ±1µV/°C (maximum)
- Gain error: ±0.2% (maximum)
