CDC6C008192-Q1
CDC6C008192-Q1 is manufactured by Texas Instruments.
CDC6C-Q1
SNAS935B
- MARCH 2025
- REVISED NOVEMBER 2025

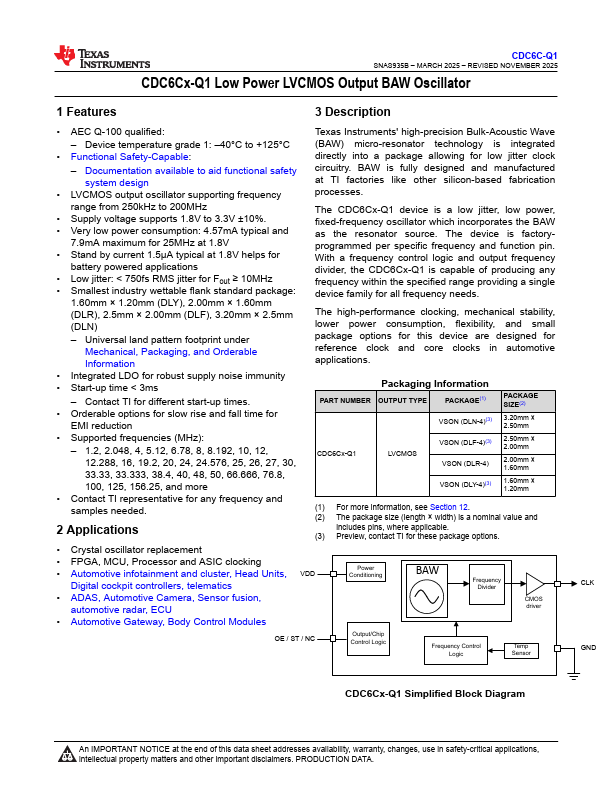

CDC6Cx-Q1 Low Power LVCMOS Output BAW Oscillator
1 Features
3 Description
- AEC Q-100 qualified:
Texas Instruments' high-precision Bulk-Acoustic Wave
- Device temperature grade 1:
- 40°C to +125°C
- Functional Safety-Capable:
- Documentation available to aid functional safety system design
- LVCMOS output oscillator supporting frequency
(BAW) micro-resonator technology is integrated directly into a package allowing for low jitter clock circuitry. BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes. range from 250kHz to 200MHz
- Supply voltage supports 1.8V to 3.3V ±10%.
- Very low...
