DIR9001 - 96-kHz 24-Bit Digital Audio Interface Receiver

Description

The DIR9001 is a digital audio interface receiver that can receive a 28-kHz to 108-kHz samplingfrequency, 24-bit-data-word, biphase-encoded signal.

Features

  • 1 One-Chip Digital Audio Interface Receiver (DIR) Including Low-Jitter Clock-Recovery System.
  • Compliant With Digital Audio Interface Standards: IEC60958 (former IEC958), JEITA CPR-1205 (former EIAJ CP-1201, CP-340), AES3, EBU tech3250.
  • Clock Recovery and Data Decode From Biphase Input Signal, Generally Called S/PDIF, EIAJ CP1201, IEC60958, AES/EBU.
  • Biphase Input Signal Sampling Frequency (fS) Range: 28 kHz to 108 kHz.
  • Low-Jitter Recovered System Clock.

📥 Download Datasheet

Datasheet preview – DIR9001

Datasheet Details

Part number DIR9001
Manufacturer Texas Instruments
File Size 516.99 KB
Description 96-kHz 24-Bit Digital Audio Interface Receiver
Datasheet download datasheet DIR9001 Datasheet

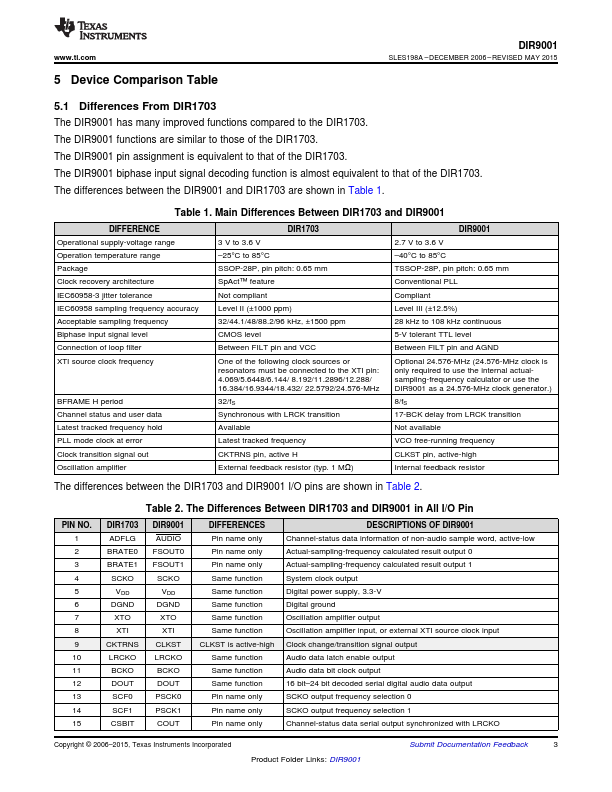

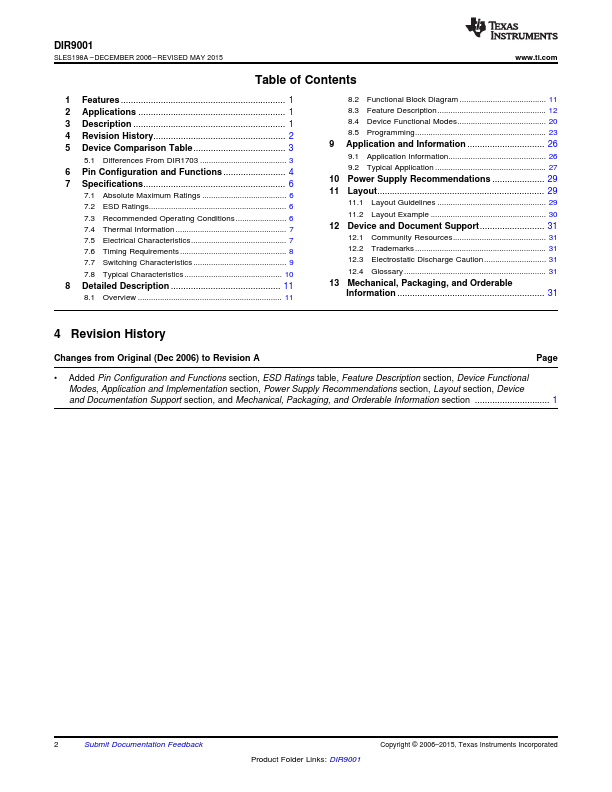

Additional preview pages of the DIR9001 datasheet.

📁 Similar Datasheet

  • DIR9001 - 96-kHz 24-Bit Digital Audio Interface Receiver (Burr-Brown)
  • DIR9001-Q1 - 96-kHz 24-Bit Digital Audio Interface Receiver (Burr-Brown)
  • DIR1701 - DIGITAL AUDIO INTERFACE RECEIVER (Burr-Brown)
  • DIR1703 - DIGITAL AUDIO INTERFACE RECEIVER (Burr-Brown)
Other Datasheets by Texas Instruments

    Full PDF Text Transcription

    Click to expand full text

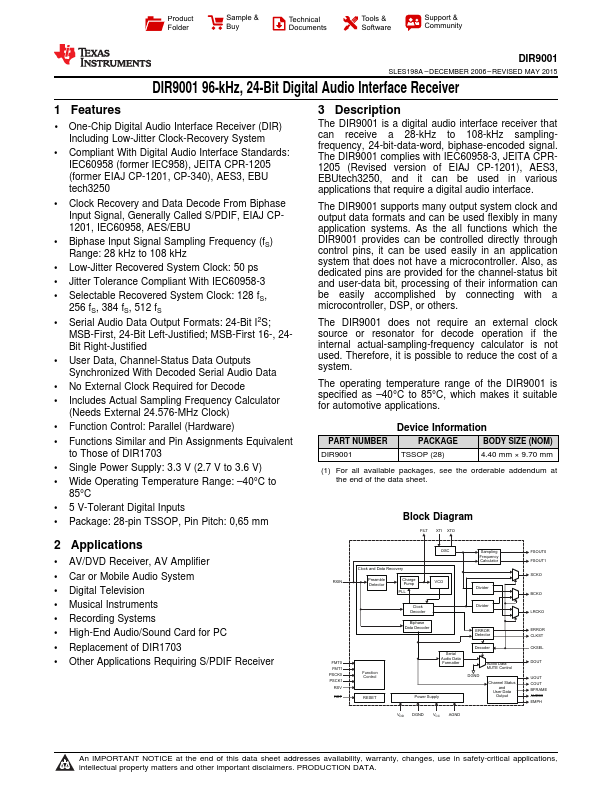

    Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DIR9001 SLES198A – DECEMBER 2006 – REVISED MAY 2015 DIR9001 96-kHz, 24-Bit Digital Audio Interface Receiver 1 Features •1 One-Chip Digital Audio Interface Receiver (DIR) Including Low-Jitter Clock-Recovery System • Compliant With Digital Audio Interface Standards: IEC60958 (former IEC958), JEITA CPR-1205 (former EIAJ CP-1201, CP-340), AES3, EBU tech3250 • Clock Recovery and Data Decode From Biphase Input Signal, Generally Called S/PDIF, EIAJ CP1201, IEC60958, AES/EBU • Biphase Input Signal Sampling Frequency (fS) Range: 28 kHz to 108 kHz • Low-Jitter Recovered System Clock: 50 ps • Jitter Tolerance Compliant With IEC60958-3 • Selectable Recovered System Clock: 128 fS, 256 fS, 384 fS, 512 fS • Serial
