DRV5055-Q1 - Automotive Ratiometric Linear Hall Effect Sensor

Datasheet Summary

Description

The DRV5055-Q1 is a linear Hall effect sensor that responds proportionally to magnetic flux density.

The device can be used for accurate position sensing in a wide range of applications.

The device operates from 3.3V or 5V power supplies.

Features

  • Ratiometric Linear Hall Effect Magnetic Sensor.
  • Operates From 3.3V and 5V Power Supplies.
  • Analog Output With VCC / 2 Quiescent Offset.
  • Magnetic Sensitivity Options (At VCC = 5V):.
  • A1: 100mV/mT, ±21mT Range.
  • A2/Z2: 50 mV/mT, ±42-mT Range.
  • A3: 25mV/mT, ±85mT Range.
  • A4: 12.5mV/mT, ±169mT Range.
  • A5:.
  • 100mV/mT, ±21mT Range.
  • Fast 20kHz Sensing Bandwidth.
  • Low-Noise Output With ±1mA Drive.

📥 Download Datasheet

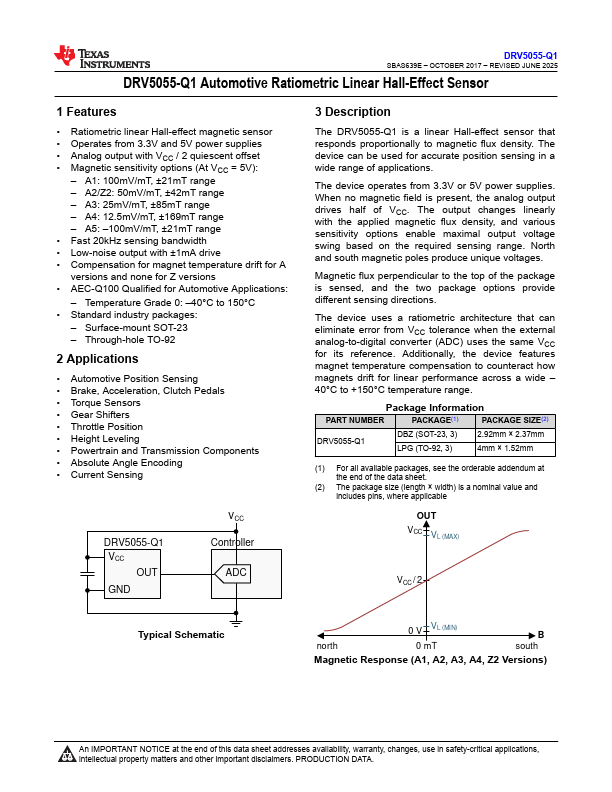

Datasheet preview – DRV5055-Q1

Datasheet Details

Part number DRV5055-Q1
Manufacturer Texas Instruments
File Size 1.29 MB
Description Automotive Ratiometric Linear Hall Effect Sensor
Datasheet download datasheet DRV5055-Q1 Datasheet
Additional preview pages of the DRV5055-Q1 datasheet.

📁 Similar Datasheet

  • DRV101 - PWM SOLENOID/VALVE DRIVER (Burr-Brown Corporation)
  • DRV102 - PWM SOLENOID/VALVE DRIVER (Burr-Brown Corporation)
  • DRV103 - PWM LOW-SIDE DRIVER (Burr-Brown Corporation)
  • DRV104 - 1.2A PWM High-Side Driver (Burr-Brown Corporation)
  • DRV1100 - HIGH POWER DIFFERENTIAL DRIVER AMPLIFIER (Burr-Brown Corporation)
  • DRV1101 - HIGH POWER DIFFERENTIAL LINE DRIVER (Burr-Brown Corporation)
  • DRV134 - (DRV134 / DRV135) AUDIO BALANCED LINE DRIVERS (Burr-Brown Corporation)
  • DRV135 - (DRV134 / DRV135) AUDIO BALANCED LINE DRIVERS (Burr-Brown Corporation)
  • DRV401 - Sensor Signal Conditioning IC (Burr-Brown)
  • DRVCO-11765 - Microwave Dielectric Resonator Oscillator (BOWEI)
Other Datasheets by Texas Instruments
  • DRV5055 - Ratiometric Linear Hall Effect Sensor
  • DRV5053 - Analog-Bipolar Hall Effect Sensor
  • DRV5053-Q1 - Automotive Analog-Bipolar Hall Effect Sensor
  • DRV5056 - unipolar ratiometric linear hall effect sensor
  • DRV5056-Q1 - Automotive Unipolar Ratiometric Linear Hall Effect Sensor
  • DRV5057 - Linear Hall Effect Sensor
  • DRV5011 - Digital-Latch Hall Effect Sensor
  • DRV5012 - Ultra-Low-Power Digital-Latch Hall-Effect Sensor

Full PDF Text Transcription

Click to expand full text
DRV5055-Q1 SBAS639D – OCTOBER 2017 – REVISED JUNE 2024 DRV5055-Q1 Automotive Ratiometric Linear Hall Effect Sensor 1 Features • Ratiometric Linear Hall Effect Magnetic Sensor • Operates From 3.3V and 5V Power Supplies • Analog Output With VCC / 2 Quiescent Offset • Magnetic Sensitivity Options (At VCC = 5V): – A1: 100mV/mT, ±21mT Range – A2/Z2: 50 mV/mT, ±42-mT Range – A3: 25mV/mT, ±85mT Range – A4: 12.
