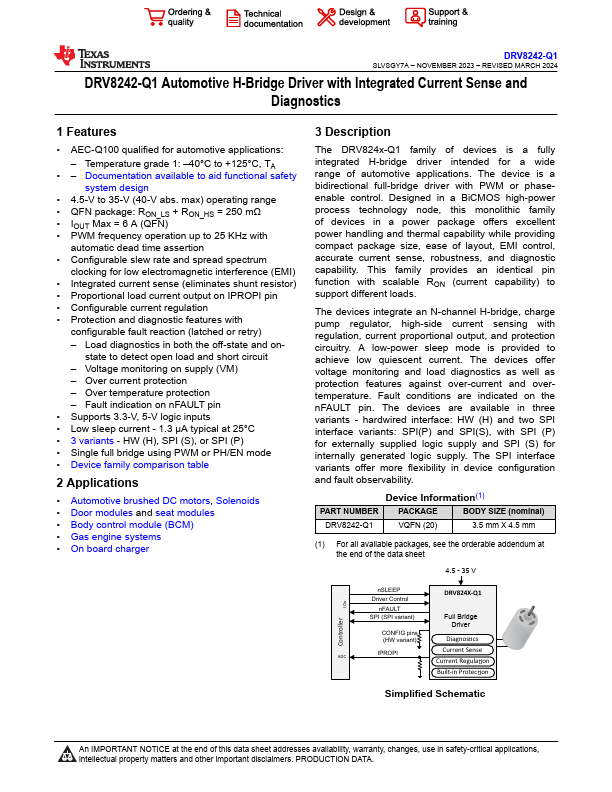

DRV8242-Q1
Overview

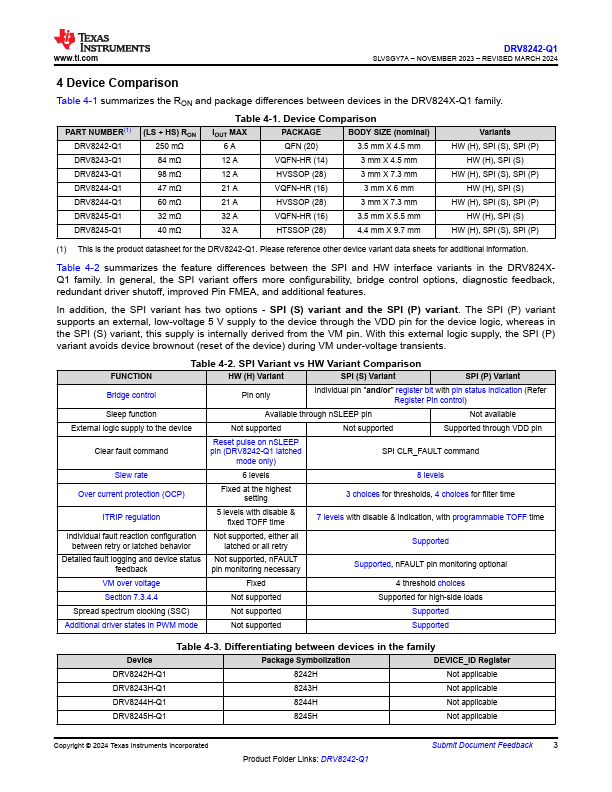

The DRV824x-Q1 family of devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device is a bidirectional full-bridge driver with PWM or phaseenable control.
- AEC-Q100 qualified for automotive applications: - Temperature grade 1: -40°C to +125°C, TA
- - Documentation available to aid functional safety system design
- 4.5-V to 35-V (40-V abs. max) operating range
- QFN package: RON_LS + RON_HS = 250 mΩ
- IOUT Max = 6 A (QFN)
- PWM frequency operation up to 25 KHz with automatic dead time assertion
- Configurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)
- Integrated current sense (eliminates shunt resistor)
- Proportional load current output on IPROPI pin
- Configurable current regulation
