DRV8251 - 4.1-A Brushed DC Motor Driver

Description

The DRV8251 device is an integrated motor driver with N-channel H-bridge, charge pump, current regulation, and protection circuitry.

The charge pump improves efficiency by supporting N-channel MOSFET half bridges and 100% duty cycle driving.

Features

  • N-channel H-bridge brushed DC motor driver.
  • 4.5-V to 48-V operating supply voltage range.
  • Pin-to-pin, RDS(on), voltage, and current sense/ regulation variants (external shunt resistor and integrated current mirror).
  • DRV8870: 6.5-V to 45-V, 565-mΩ, shunt.
  • DRV8251: 4.5-V to 48-V, 450-mΩ, shunt.
  • DRV8251A: 4.5-V to 48-V, 450-mΩ, mirror.
  • DRV8231: 4.5-V to 33-V, 600-mΩ, shunt.
  • DRV8231A: 4.5-V to 33-V, 600-mΩ, mirror.
  • Hig.

📥 Download Datasheet

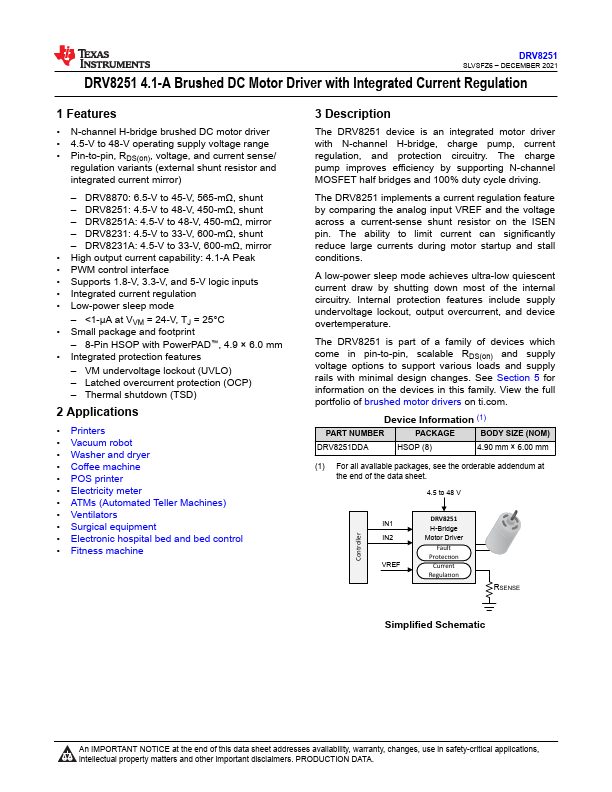

Datasheet preview – DRV8251

Datasheet Details

Part number DRV8251
Manufacturer Texas Instruments
File Size 3.07 MB
Description 4.1-A Brushed DC Motor Driver
Datasheet download datasheet DRV8251 Datasheet

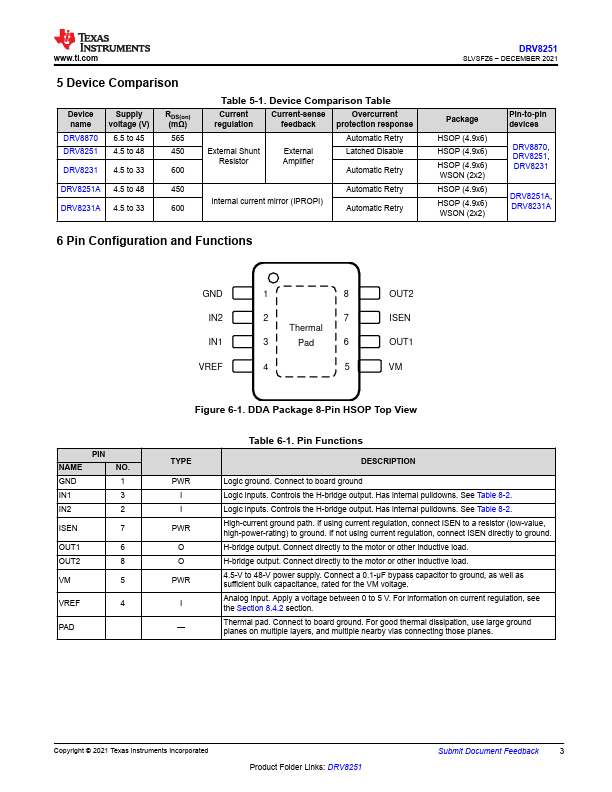

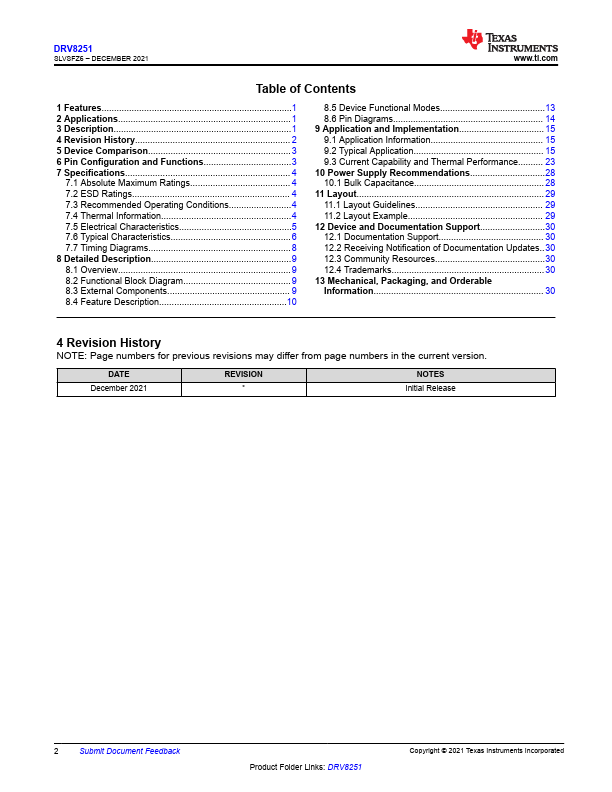

Additional preview pages of the DRV8251 datasheet.

📁 Similar Datasheet

  • DRV101 - PWM SOLENOID/VALVE DRIVER (Burr-Brown Corporation)
  • DRV102 - PWM SOLENOID/VALVE DRIVER (Burr-Brown Corporation)
  • DRV103 - PWM LOW-SIDE DRIVER (Burr-Brown Corporation)
  • DRV104 - 1.2A PWM High-Side Driver (Burr-Brown Corporation)
  • DRV1100 - HIGH POWER DIFFERENTIAL DRIVER AMPLIFIER (Burr-Brown Corporation)
  • DRV1101 - HIGH POWER DIFFERENTIAL LINE DRIVER (Burr-Brown Corporation)
  • DRV134 - (DRV134 / DRV135) AUDIO BALANCED LINE DRIVERS (Burr-Brown Corporation)
  • DRV135 - (DRV134 / DRV135) AUDIO BALANCED LINE DRIVERS (Burr-Brown Corporation)
  • DRV401 - Sensor Signal Conditioning IC (Burr-Brown)
  • DRVCO-11765 - Microwave Dielectric Resonator Oscillator (BOWEI)
Other Datasheets by Texas Instruments
  • DRV8212 - 11-V H-Bridge Motor Driver
  • DRV8231 - 3.7-A Brushed DC Motor Driver
  • DRV8262 - Single or Dual H-Bridge Motor Driver
  • DRV8145-Q1 - Automotive Half Bridge Driver
  • DRV8301 - Three-Phase Gate Driver
  • DRV8301-Q1 - Automotive Three-Phase Gate Driver
  • DRV8302 - Three-Phase Gate Driver
  • DRV8303 - Three-Phase Gate Driver

Full PDF Text Transcription

Click to expand full text
DRV8251 SLVSFZ6 – DECEMBER 2021 DRV8251 4.1-A Brushed DC Motor Driver with Integrated Current Regulation 1 Features • N-channel H-bridge brushed DC motor driver • 4.5-V to 48-V operating supply voltage range • Pin-to-pin, RDS(on), voltage, and current sense/ regulation variants (external shunt resistor and integrated current mirror) – DRV8870: 6.5-V to 45-V, 565-mΩ, shunt – DRV8251: 4.5-V to 48-V, 450-mΩ, shunt – DRV8251A: 4.5-V to 48-V, 450-mΩ, mirror – DRV8231: 4.5-V to 33-V, 600-mΩ, shunt – DRV8231A: 4.5-V to 33-V, 600-mΩ, mirror • High output current capability: 4.1-A Peak • PWM control interface • Supports 1.8-V, 3.
