Texas Instruments DS08MB200
The DS08MB200 is a dual-port 1 to 2 repeater/buffer and 2 to 1 multiplexer. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on TI's 10-, 16-, and 18- bit Bus LVDS SerDes, or to CML or LVPECL signals. The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial -40 to +85°C temperature range.| Part No. | DS08MB200 |
|---|---|
| Datasheet | DS08MB200 Download |
| Manufacturer |  Texas Instruments |
| Description | Dual 800 Mbps 2:1/1:2 LVDS Mux/Buffer |
| Buy | Stock & Price |
FEATURES
1●2 Up to 800 Mbps Data Rate per Channel
● LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs
● Low Output Skew and Jitter
● On-Chip 100Ω Input Termination
● 15 kV ESD Protection on LVDS Inputs/Outputs
● Hot Plug Protection
● Single 3.3V Supply
● Industrial -40 to +85°C Temperature Range
● 48-pin WQFN Package
DESCRIPTION

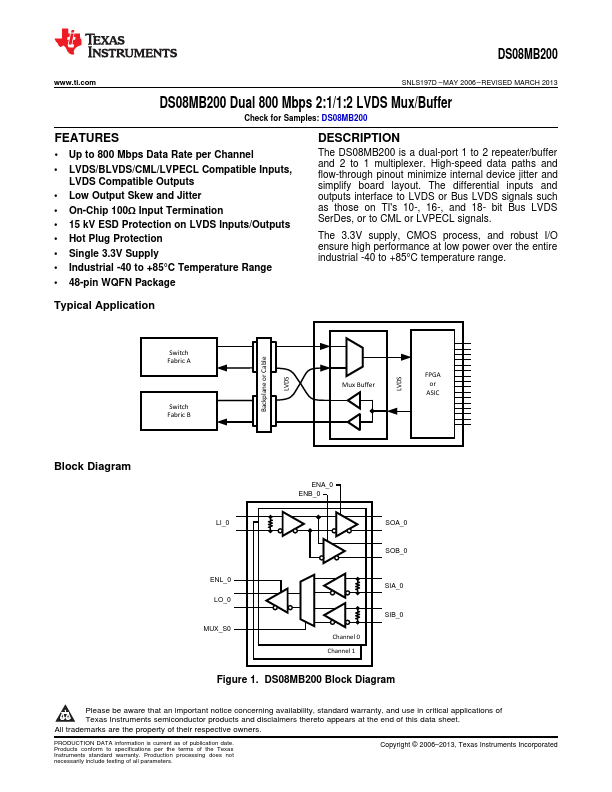

High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout. Typical Application Switch Fabric A Switch Fabric B Backplane or Cable LVDS LVDS Mux Buffer FPGA or ASIC Block Diagram ENA_0 ENB_0 LI_0 SOA_0 SOB_0 ENL_0 LO_0 MUX_S0 SIA_0 Channel 0 Channel 1 SIB_0 Figure 1. DS08MB200 Block Diagram 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. 2 PRODUCTION DATA information is current as of publication date.
