Texas Instruments ESD862
The ESD8x2 devices are bidirectional ESD protection diodes for USB power delivery (USB-PD) and industrial interfaces. The devices are rated to dissipate ESD that meets or exceeds the maximum level specified in the IEC 61000-4-2 standard (±25kV contact and airgap, ±20kV contact and airgap, or ±18kV contact and airgap). The low dynamic resistance and low clamping voltage enables system level protection against transient events.| Part No. | ESD862 |
|---|---|
| Datasheet | ESD862 Download |
| Manufacturer |  Texas Instruments |
| Description | 2-Channel 36V ESD Protection Diode |
| Buy | Stock & Price |

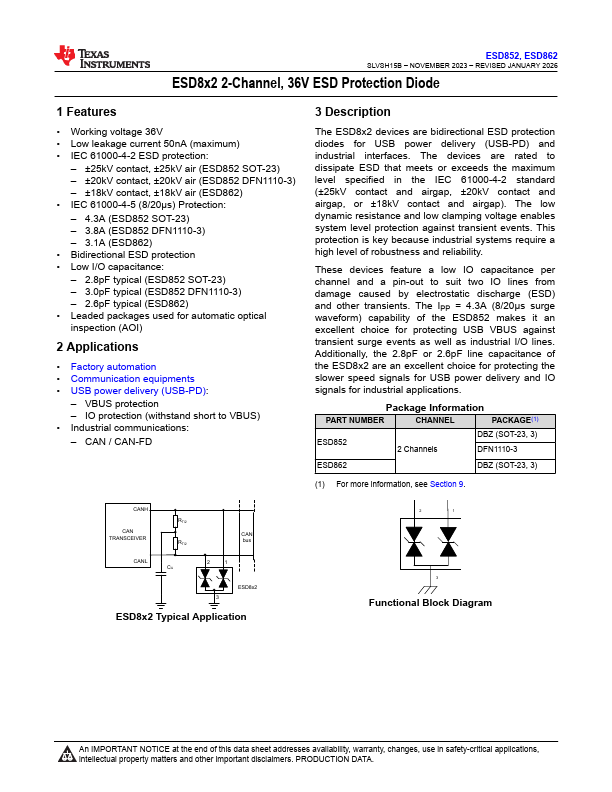

FEATURES
● Working voltage 36V● Low leakage current 50nA (maximum)
● IEC 61000-4-2 ESD protection: – ±25kV contact, ±25kV air (ESD852 SOT-23) – ±20kV contact, ±20kV air (ESD852 DFN1110-3) – ±18kV contact, ±18kV air (ESD862)
● IEC 61000-4-5 (8/20µs) Protection: – 4.3A (ESD852 SOT-23) – 3.8A (ESD852 DFN1110-3) – 3.1A (ESD862)
● Bidirectional ESD protection
● Low I/O capacitance: – 2.8pF typical (ESD852 SOT-23) – 3.0pF typical (ESD852 DFN1110-3) – 2.6pF typical (ESD862)
● Leaded packages used for automatic optical inspection (AOI) 2
APPLICATIONS
● Factory automation● Communication equipments
● USB power delivery (USB-PD): – VBUS protection – IO protection (withstand short to VBUS)
● Industrial communications: – CAN / CAN-FD 3
DESCRIPTION
This protection is key because industrial systems require a high level of robustness and reliability. These devices feature a low IO capacitance per channel and a pin-out to suit two IO lines from damage caused by electrostatic discharge (ESD) and other transients.
